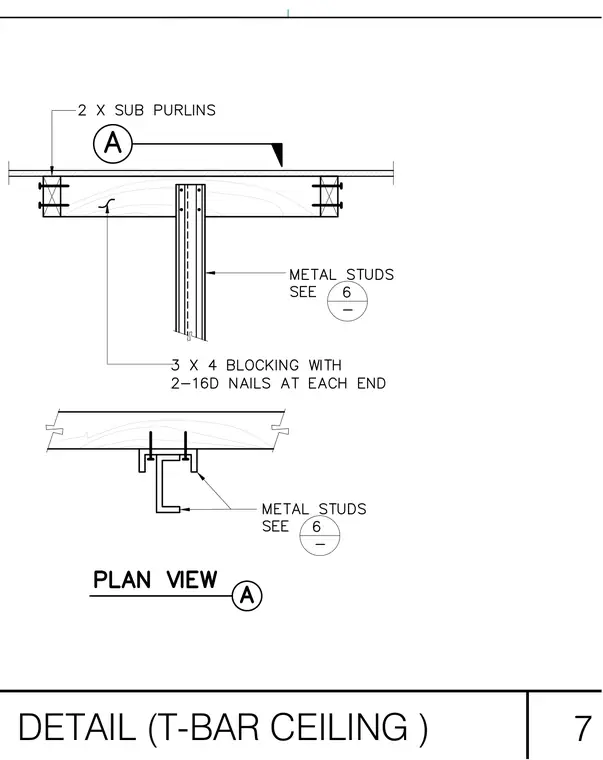

Two-by sub-purlins support the ceiling assembly with three-by-four wood blocking secured by two 16d nails at each end. Metal studs frame downward from the blocking and intersect the suspended T-bar ceiling grid. The layout includes both section and plan views detailing the connection between the partition studs and the ceiling framing members.
