Structural · S-24K7Z

Curtain Wall Bypass at Mass Timber Floor Slab

Materials

Concrete Steel Timber / Wood

Elements

Walls Curtain Walls Floors / Slabs Arches

Connections

Rebar Splice / Development Timber / Mass-Timber Connection

About this detail

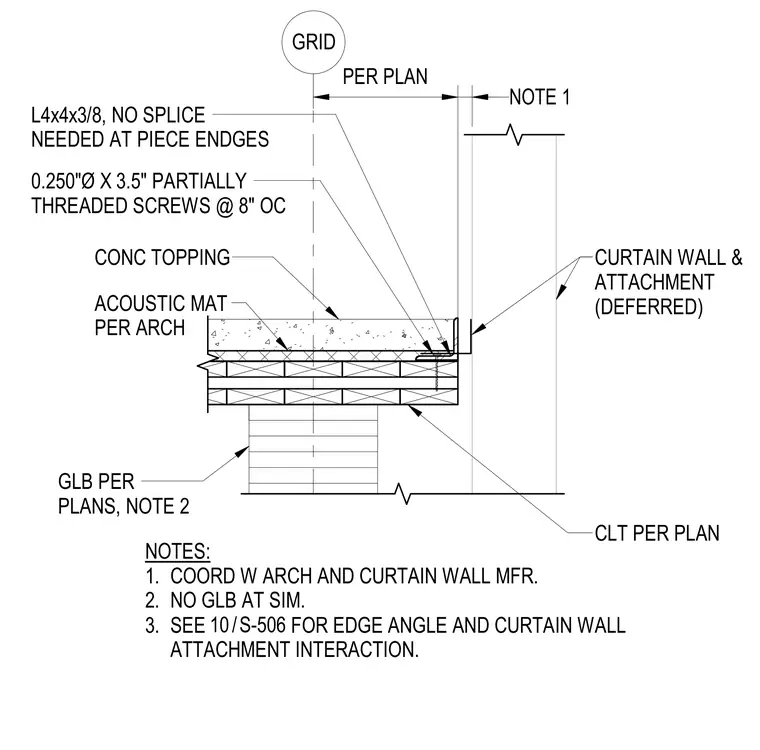

A cross-laminated timber floor panel receives a concrete topping over an acoustic mat, supported by a glulam beam sized per plan. An L4x4x3/8 steel edge angle is anchored to the floor assembly using 0.250-inch diameter by 3.5-inch partially threaded screws spaced at 8 inches on center, requiring no splices at piece edges. A deferred curtain wall and its attachment interface with the edge angle, coordinated with the architectural drawings and manufacturer specifications. General notes specify coordination with the architect and curtain wall manufacturer, omission of glulam at similar conditions, and cross-reference detail 10 on sheet S-506 for further interaction details.
