Structural · S-24HCW

Reinforcing Bar Development and Splice Length Notes

Elements

Connections

About this detail

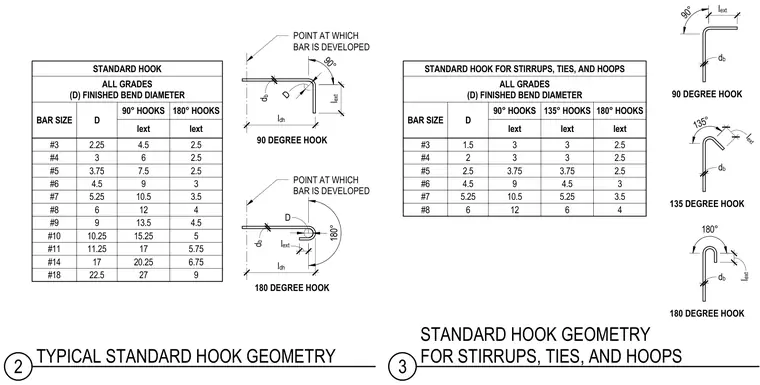

Standard hook geometry and development length tables specify finished bend diameters and extension lengths for 90-degree, 135-degree, and 180-degree hooks across bar sizes ranging from #3 through #18. Diagrams illustrate the point at which the bar is developed, finished bend diameter D, and extension length l_ext for standard hooks and stirrups, ties, and hoops.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
