A gusset plate connects to the top flange of a structural steel beam supporting a reinforced concrete slab on a metal deck. Number four dowel bars of grade sixty steel span each side of the gusset plate with hooked ends at the slab edge. Additional number four reinforcing bars at twelve inches on center run through the concrete slab per schedule. Working points align with the beam centerline and brace members as indicated per plan and elevation.

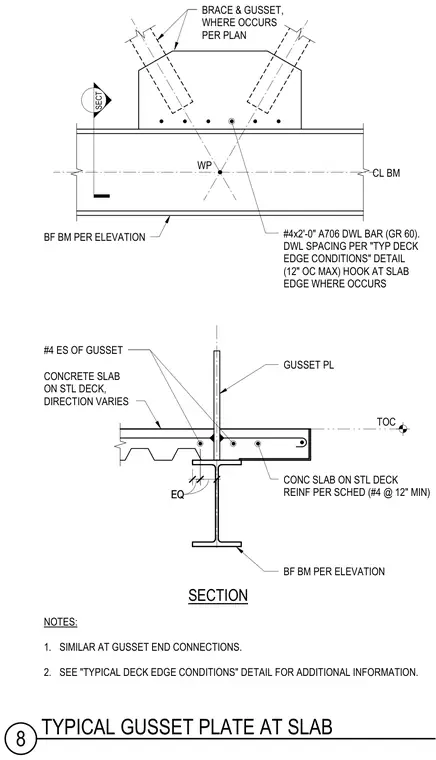

SECT GUSSET PL CONC SLAB ON STL DECK REINF PER SCHED (#4 @ 12" MIN) TOC CONCRETE SLAB ON STL DECK, DIRECTION VARIES #4 ES OF GUSSET SECTION BF BM PER ELEVATION EQ EQ WP CL BM #4x2'-0" A706 DWL BAR (GR 60). DWL SPACING PER "TYP DECK EDGE CONDITIONS" DETAIL (12" OC MAX) HOOK AT SLAB EDGE WHERE OCCURS NOTES: 1. SIMILAR AT GUSSET END CONNECTIONS. 2. SEE "TYPICAL DECK EDGE CONDITIONS" DETAIL FOR ADDITIONAL INFORMATION. BF BM PER ELEVATION BRACE & GUSSET, WHERE OCCURS PER PLAN 8 TYPICAL GUSSET PLATE AT SLAB
