Post-installed dowels anchor concrete housekeeping pads and curbs to an existing concrete slab on grade. The housekeeping pad features number four reinforcing bars at eighteen inches on center each way, tied into the slab with number four dowels spaced at eighteen inches on center at the perimeter and eight feet on center at the interior. The concrete curb is reinforced with one continuous number four horizontal bar and tied to the slab using number four dowels at eighteen inches on center.

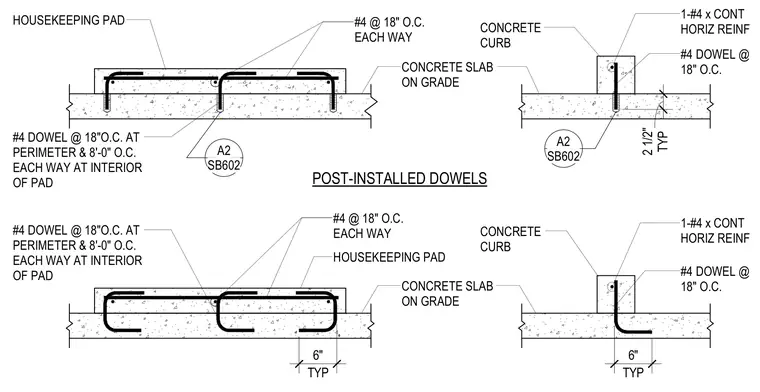

POST-INSTALLED DOWELS HOUSEKEEPING PAD #4 @ 18" O.C. EACH WAY CONCRETE SLAB ON GRADE HOUSEKEEPING PAD #4 @ 18" O.C. EACH WAY #4 DOWEL @ 18"O.C. AT PERIMETER & 8'-0" O.C. EACH WAY AT INTERIOR OF PAD #4 DOWEL @ 18"O.C. AT PERIMETER & 8'-0" O.C. EACH WAY AT INTERIOR OF PAD 1-#4 x CONT HORIZ REINF CONCRETE CURB #4 DOWEL @ 18" O.C. CONCRETE CURB 1-#4 x CONT HORIZ REINF #4 DOWEL @ 18" O.C. CONCRETE SLAB ON GRADE TYP 6" TYP 2 1/2" TYP 6" SB602 A2 SB602 A2
