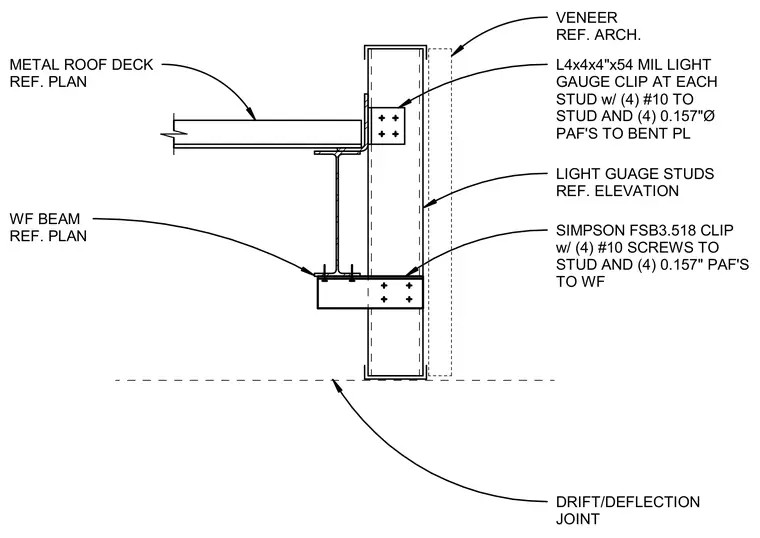

A drift and deflection joint connects light gauge steel studs to a wide flange roof beam and bent plate. The cold-formed steel framing is anchored using a Simpson FSB3.518 clip attached with four number 10 screws to the stud and four 0.157-inch powder-actuated fasteners to the wide flange beam. An additional light gauge angle clip secured with fasteners connects the stud framing to a bent plate assembly below the metal roof deck. Exterior veneer and metal roof deck conditions are referenced to architectural plans.
DRIFT/DEFLECTION JOINT SIMPSON FSB3.518 CLIP w/ (4) #10 SCREWS TO STUD AND (4) 0.157" PAF'S TO WF L4x4x4"x54 MIL LIGHT GAUGE CLIP AT EACH STUD w/ (4) #10 TO STUD AND (4) 0.157"Ø PAF'S TO BENT PL VENEER REF. ARCH. METAL ROOF DECK REF. PLAN WF BEAM REF. PLAN LIGHT GUAGE STUDS REF. ELEVATION
