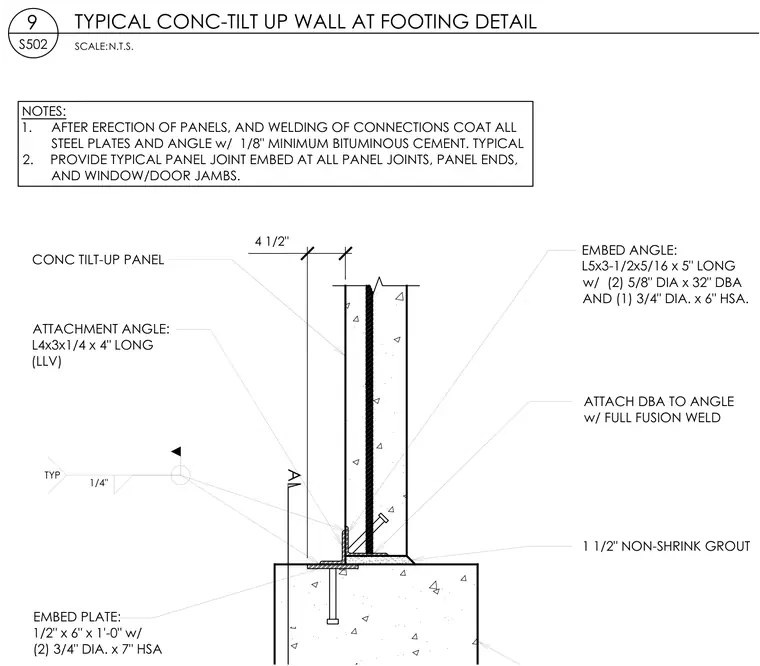

A concrete tilt-up wall panel bears on a one-and-a-half-inch layer of non-shrink grout at the foundation footing. An embed angle measuring L5x3-1/2x5/16 by five inches long is anchored with two five-eighth-inch diameter by thirty-two-inch deformed bar anchors and one three-quarter-inch diameter by six-inch headed stud anchor. An attachment angle measuring L4x3x1/4 by four inches long connects to a half-inch by six-inch by one-foot-zero-inch embed plate with two three-quarter-inch diameter by seven-inch headed stud anchors. The deformed bar anchor is attached to the angle with a full fusion weld, and steel plates and angles are coated with a one-eighth-inch minimum bituminous cement after erection.
EMBED PLATE: 1/2" x 6" x 1'-0" w/ (2) 3/4" DIA. x 7" HSA ATTACHMENT ANGLE: L4x3x1/4 x 4" LONG (LLV) 4 1/2" 1 1/2" NON-SHRINK GROUT EMBED ANGLE: L5x3-1/2x5/16 x 5" LONG w/ (2) 5/8" DIA x 32" DBA AND (1) 3/4" DIA. x 6" HSA. CONC TILT-UP PANEL A ATTACH DBA TO ANGLE w/ FULL FUSION WELD SCALE: 9 S502 TYPICAL CONC-TILT UP WALL AT FOOTING DETAIL N.T.S. 1/4" TYP NOTES: 1. AFTER ERECTION OF PANELS, AND WELDING OF CONNECTIONS COAT ALL STEEL PLATES AND ANGLE w/ 1/8" MINIMUM BITUMINOUS CEMENT. TYPICAL 2. PROVIDE TYPICAL PANEL JOINT EMBED AT ALL PANEL JOINTS, PANEL ENDS, AND WINDOW/DOOR JAMBS.
