Structural · S-243DD

Slab on Metal Deck to Concrete Wall Connection with Post-Installed Angle

Materials

Concrete Steel

Elements

Columns Walls Floors / Slabs Decks Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Deck Attachment Embed Plate

About this detail

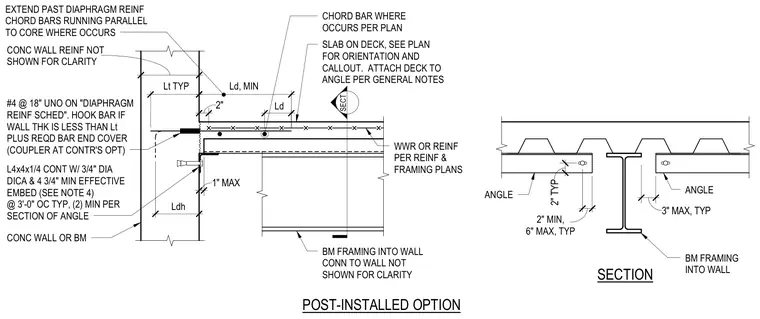

A floor slab on metal deck bears on a continuous structural angle fastened to a concrete wall or beam. The continuous L4x4x1/4 angle is anchored using three-quarter-inch diameter post-installed anchors with a four and three-quarter inch minimum effective embedment spaced at three feet on center typical, with a minimum of two anchors per angle section. The slab reinforcement includes welded wire reinforcement or reinforcing bars per the framing plans, along with chord bars extending past the diaphragm reinforcement and number four bars at eighteen inches on center. A hook bar is specified if the wall thickness is less than the development length plus the required bar end cover, with a mechanical coupler provided at the contractor's option. A secondary section view details the beam framing into the wall with clearance and spacing dimensions for the supporting angles.
