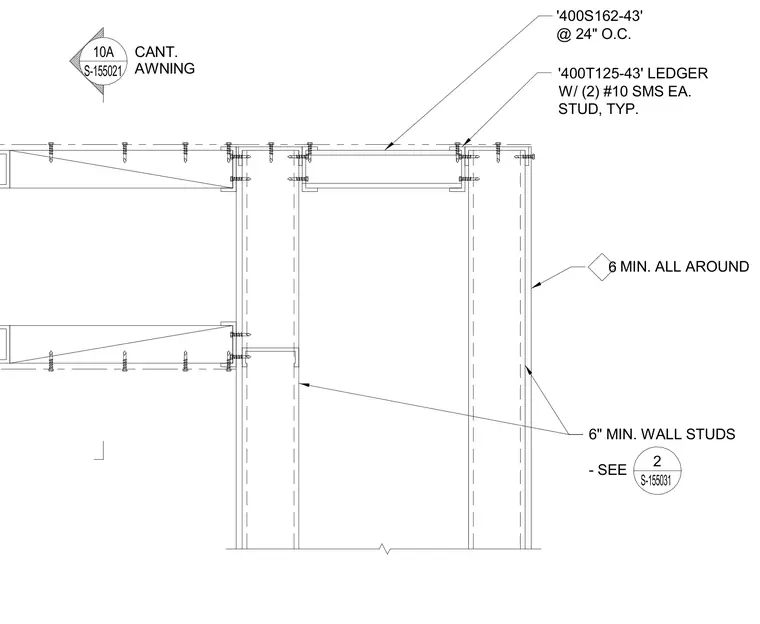

Cold-formed steel wall studs sized 400S162-43 at 24 inches on center support a cantilevered awning with a 400T125-43 ledger track. The ledger track is fastened to each wall stud with two number 10 self-tapping metal screws typically. Six-inch minimum wall studs frame the opening per the referenced detail.
10A S-155021 CANT. AWNING 6 '400T125-43' LEDGER W/ (2) #10 SMS EA. STUD, TYP. '400S162-43' @ 24" O.C. 6" MIN. WALL STUDS - SEE MIN. ALL AROUND 2 S-155031
