Concrete Curb Profiles and Reinforcement Details

Materials

Concrete

Elements

Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

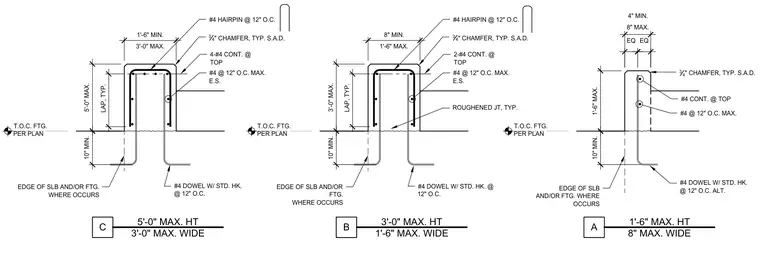

These concrete curb details show reinforcement layouts for three different curb configurations designated as A, B, and C, with maximum heights ranging from 1 foot 6 inches to 5 feet and widths from 8 inches to 3 feet. Each curb features continuous number 4 top bars, number 4 vertical bars at 12 inches on center each side, number 4 hairpins at 12 inches on center, and number 4 dowels with standard hooks at 12 inches on center lapped a minimum of 10 inches into the slab or footing. Standard 3/4 inch chamfers are specified at exposed edges, and cold joints are indicated with roughened surfaces where the curb ties into the underlying concrete slab or footing.
