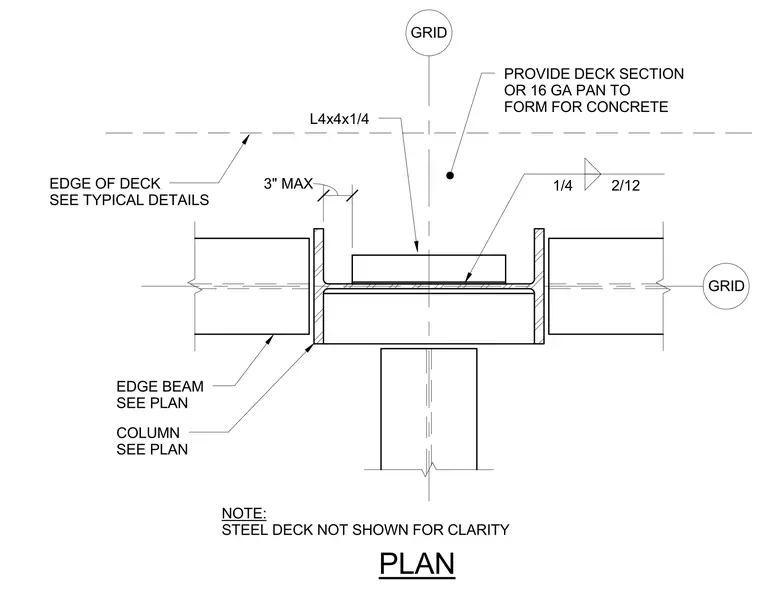

An angle member labeled L4x4x1/4 is positioned over an edge beam sized per plan at an exterior column grid line. A deck section or sixteen gauge pan is provided to form for concrete with a one-quarter inch weld. The edge of the deck aligns with typical details maintaining a three-inch maximum dimension. Steel deck is omitted from the drawing for clarity.
GRID GRID PROVIDE DECK SECTION OR 16 GA PAN TO FORM FOR CONCRETE COLUMN SEE PLAN EDGE BEAM SEE PLAN EDGE OF DECK SEE TYPICAL DETAILS L4x4x1/4 1/4 2/12 3" MAX NOTE: STEEL DECK NOT SHOWN FOR CLARITY PLAN
