This structural steel connection details moment-resisting connections between beams of differing depths framing into opposite sides of a column flange. A shear tab connects the beam web to the column flange using a specified number and size of bolts, with a shear tab thickness equal to the beam web thickness plus one-quarter inch. Continuity plates are welded to the top and bottom flanges of the column, using the larger of the two flange thicknesses, with a sloped bottom plate provided when the depth difference is less than three inches. A second row of bolts is added as required per the structural plans.

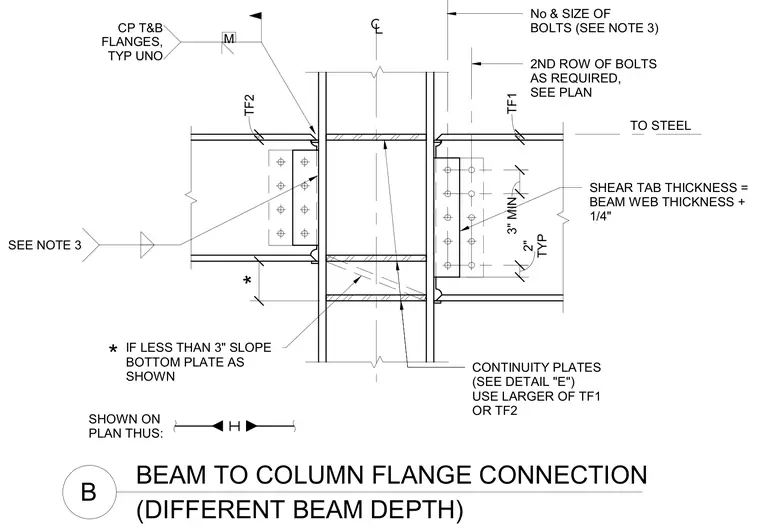

BEAM TO COLUMN FLANGE CONNECTION (DIFFERENT BEAM DEPTH) B TO STEEL No & SIZE OF BOLTS (SEE NOTE 3) 2ND ROW OF BOLTS AS REQUIRED, SEE PLAN IF LESS THAN 3" SLOPE BOTTOM PLATE AS SHOWN CONTINUITY PLATES (SEE DETAIL "E") USE LARGER OF TF1 OR TF2 SHEAR TAB THICKNESS = BEAM WEB THICKNESS + 1/4" * SHOWN ON PLAN THUS: * 3" MIN TYP 2" TF2 TF1 CP T&B FLANGES, TYP UNO M SEE NOTE 3
