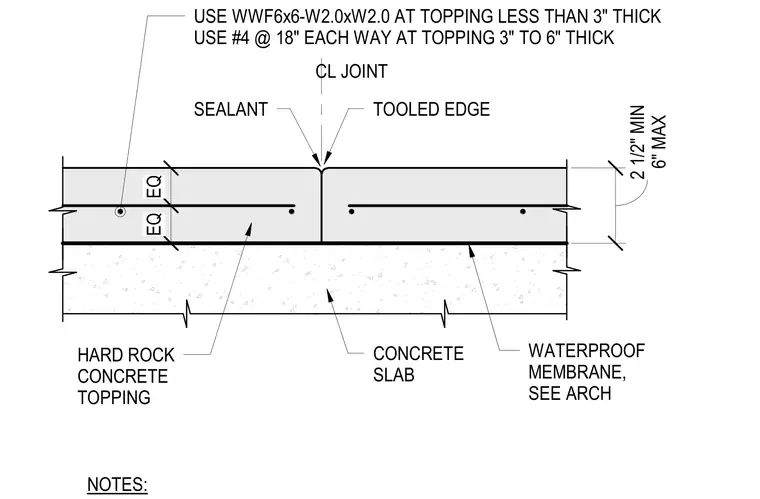

A hard rock concrete topping slab is placed over a concrete substrate separated by a waterproof membrane. A center line joint features tooled edges filled with sealant. Reinforcement consists of welded wire fabric 6x6-W2.0xW2.0 for toppings less than 3 inches thick, or number 4 bars spaced at 18 inches each way for toppings 3 to 6 inches thick. The topping thickness ranges from 2 1/2 inches minimum to 6 inches maximum.
CL JOINT CONCRETE SLAB NOTES: HARD ROCK CONCRETE TOPPING SEALANT WATERPROOF MEMBRANE, SEE ARCH TOOLED EDGE USE WWF6x6-W2.0xW2.0 AT TOPPING LESS THAN 3" THICK USE #4 @ 18" EACH WAY AT TOPPING 3" TO 6" THICK EQ EQ 6" MAX 2 1/2" MIN
