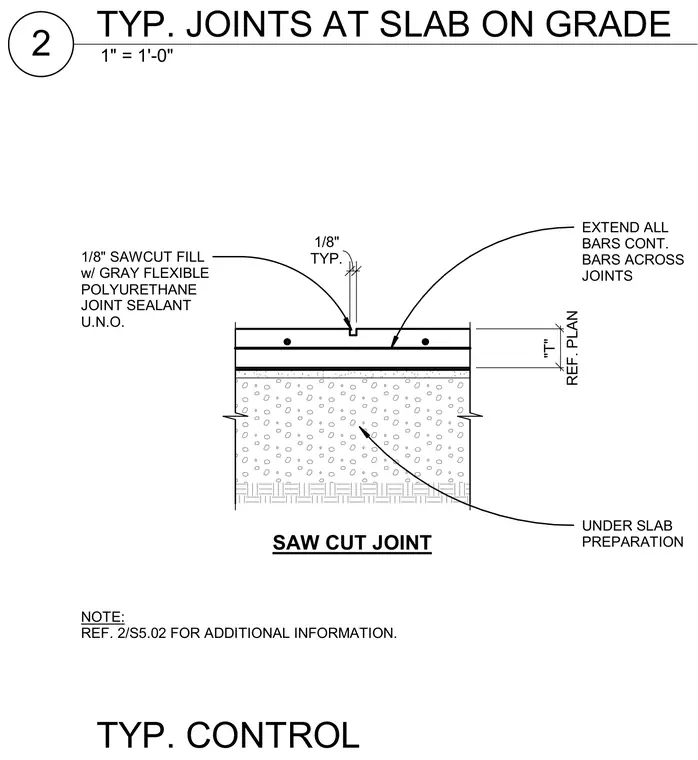

A typical saw cut control joint in a concrete slab on grade over a prepared subbase features a one-eighth inch wide sawcut filled with gray flexible polyurethane joint sealant unless noted otherwise. Reinforcing bars are extended continuously across the joint location with slab thickness determined per plan.
UNDER SLAB PREPARATION SAW CUT JOINT 1/8" SAWCUT FILL w/ GRAY FLEXIBLE POLYURETHANE JOINT SEALANT U.N.O. 1/8" TYP. REF. PLAN "T" NOTE: REF. 2/S5.02 FOR ADDITIONAL INFORMATION. EXTEND ALL BARS CONT. BARS ACROSS JOINTS 1" = 1'-0" 2 TYP. JOINTS AT SLAB ON GRADE TYP. CONTROL
