A reinforced concrete stair landing is suspended from the floor slab above using a 1-inch diameter steel hanger rod at each corner of the landing for a total of two rods. The upper end of each hanger rod anchors through a 1/2-inch by 5-inch by 5-inch ASTM A36 steel plate bearing on top of the concrete slab. The lower end passes through the concrete landing and secures with two continuous number 5 top and bottom reinforcing bars with standard hooks at each end, typical at both ends of the hanger. The stair landing features number 4 bars at 12 inches spacing and number 5 bars at 12 inches spacing, with reinforcement per typical concrete stair reinforcement details.

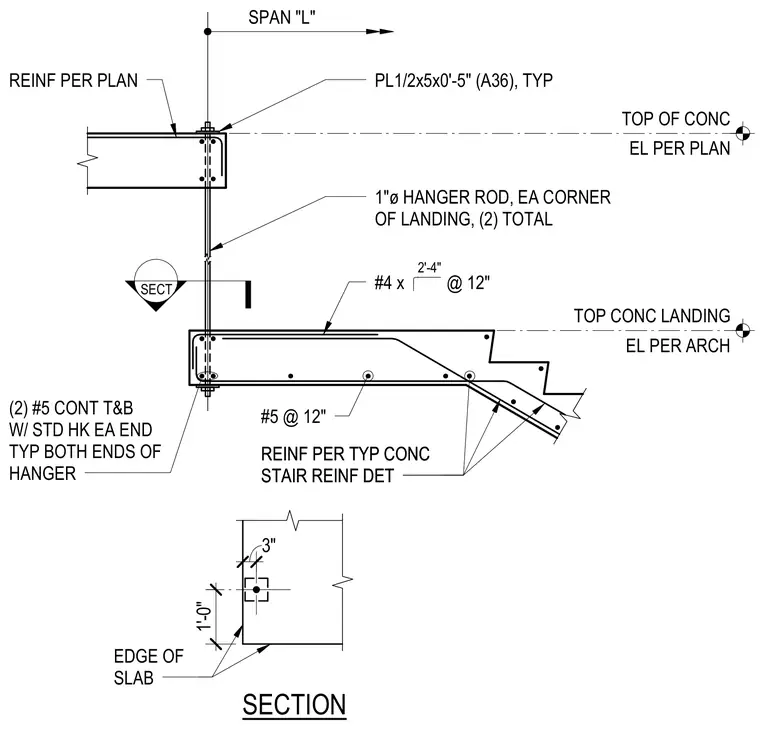

SECT SPAN "L" REINF PER TYP CONC STAIR REINF DET REINF PER TYP CONC STAIR REINF DET SECTION 3" 1'-0" EDGE OF SLAB EL PER PLAN TOP OF CONC EL PER ARCH TOP CONC LANDING #5 @ 12" #4 x @ 12" 2'-4" 1"ø HANGER ROD, EA CORNER OF LANDING, (2) TOTAL PL1/2x5x0'-5" (A36), TYP REINF PER PLAN (2) #5 CONT T&B W/ STD HK EA END TYP BOTH ENDS OF HANGER
