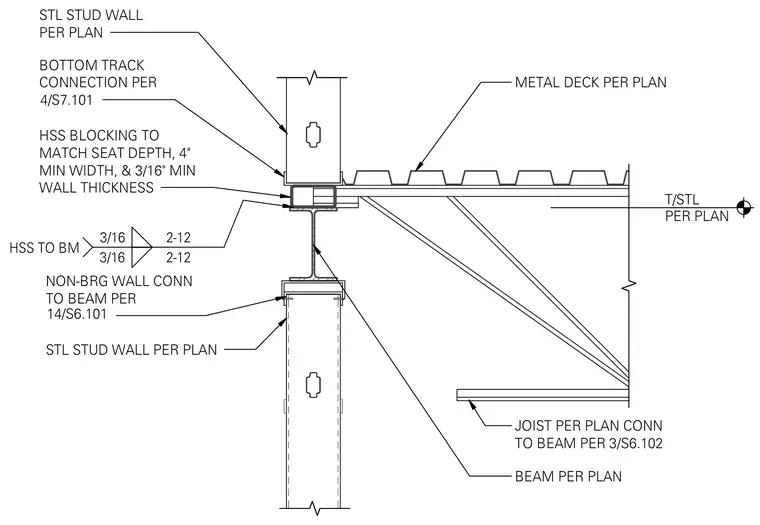

An open web steel joist bears on a structural steel beam supporting a metal deck roof, with an upper cold-formed steel stud wall anchored to hollow structural section blocking above the beam flange. The hollow structural section blocking matches the joist seat depth with a four-inch minimum width and three-sixteenth-inch minimum wall thickness, welded to the beam flange with three-sixteenth-inch fillet welds spaced at twelve inches. A lower cold-formed steel non-bearing wall connects to the underside of the beam per engineering details.
T/STL PER PLAN 3/16 2-12 3/16 2-12 HSS TO BM METAL DECK PER PLAN JOIST PER PLAN CONN TO BEAM PER 3/S6.102 BEAM PER PLAN STL STUD WALL PER PLAN BOTTOM TRACK CONNECTION PER 4/S7.101 HSS BLOCKING TO MATCH SEAT DEPTH, 4" MIN WIDTH, & 3/16" MIN WALL THICKNESS STL STUD WALL PER PLAN NON-BRG WALL CONN TO BEAM PER 14/S6.101
