Structural · S-22ZFP

Concrete Slab Step Reinforcement Detail

Materials

Elements

About this detail

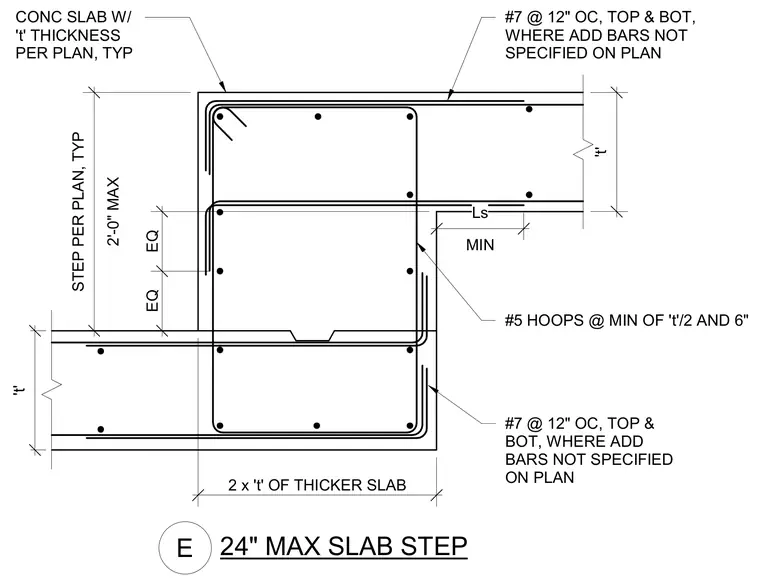

A concrete slab step transition features a thicker drop section reinforced with number five hoops spaced at a minimum of slab thickness divided by two and six inches on center. Number seven reinforcing bars run top and bottom at twelve inches on center where additional bars are not specified on plan. The step depth measures a maximum of twenty-four inches with equal spacing dimensions. The thicker slab extension spans twice the slab thickness with specified lap splices.
