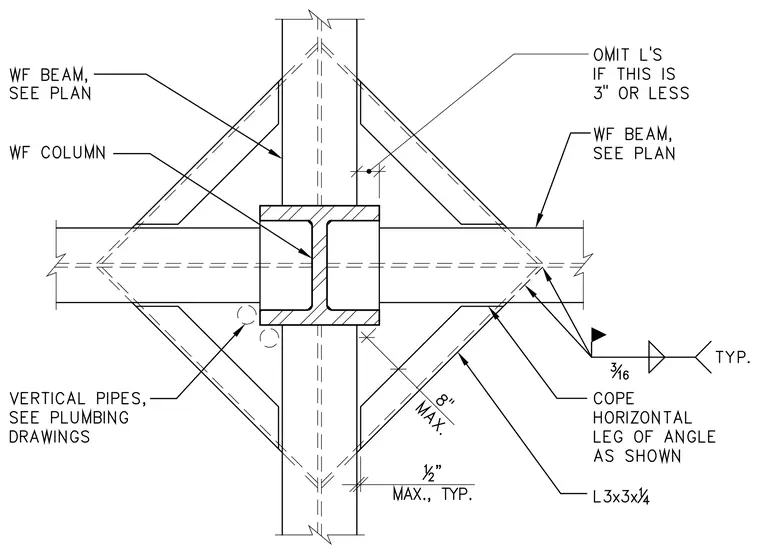

Wide-flange beams frame into a wide-flange column with supporting L3x3x1/4 angles welded with three-sixteenths inch fillet welds typical. The horizontal leg of the angle is coped as shown. The structural angles are omitted if the space is three inches or less. A half-inch maximum typical clearance is maintained, and vertical pipes are coordinated per plumbing drawings.
