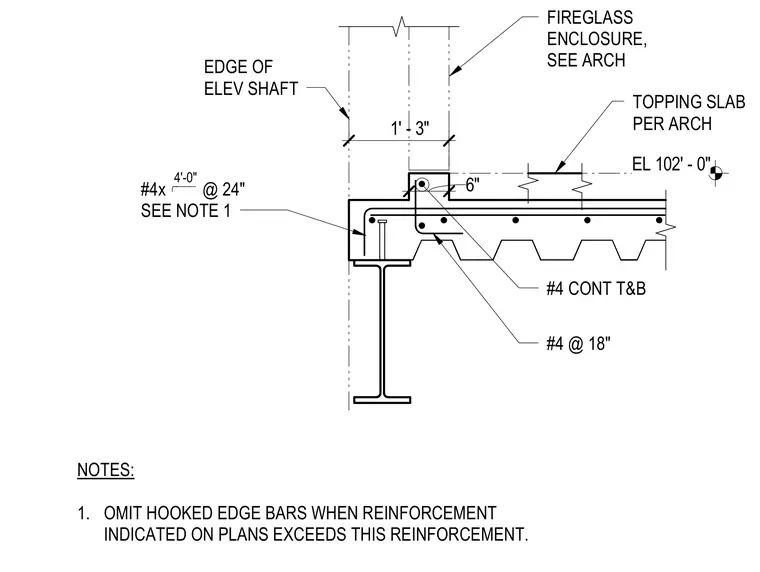

A concrete slab edge and raised curb at an elevator shaft boundary are supported by a steel beam with a topping slab. The assembly features number four continuous top and bottom reinforcing bars, number four bars spaced at eighteen inches on center, and four-foot-long hooked edge bars spaced at twenty-four inches on center per note one. A fireglass enclosure sits above the curb at elevation 102'-0".
EL 102' - 0" 1' - 3" 6" #4 @ 18" #4 CONT T&B EDGE OF ELEV SHAFT FIREGLASS ENCLOSURE, SEE ARCH #4x @ 24" SEE NOTE 1 4'-0" NOTES: 1. OMIT HOOKED EDGE BARS WHEN REINFORCEMENT INDICATED ON PLANS EXCEEDS THIS REINFORCEMENT. TOPPING SLAB PER ARCH
