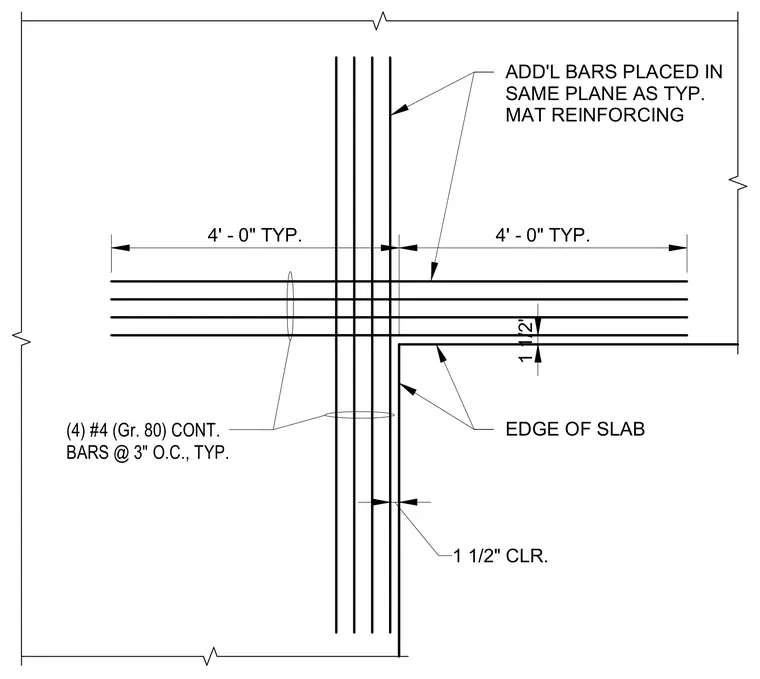

Four number four Grade eighty continuous reinforcing bars are spaced at three inches on center along the edge of the slab. These additional bars are placed in the same plane as the typical mat reinforcing. A one and one-half inch concrete clearance is maintained at the edge of the slab.
(4) #4 (Gr. 80) CONT. BARS @ 3" O.C., TYP. EDGE OF SLAB 1 1/2" CLR. 4' - 0" TYP. 4' - 0" TYP. ADD'L BARS PLACED IN SAME PLANE AS TYP. MAT REINFORCING 1 1/2"
