Structural · S-22FF3

Provide Pl 1/4"X5"Xcont

Materials

Concrete Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Walls Windows Curtain Walls Floors / Slabs Decks Arches

About this detail

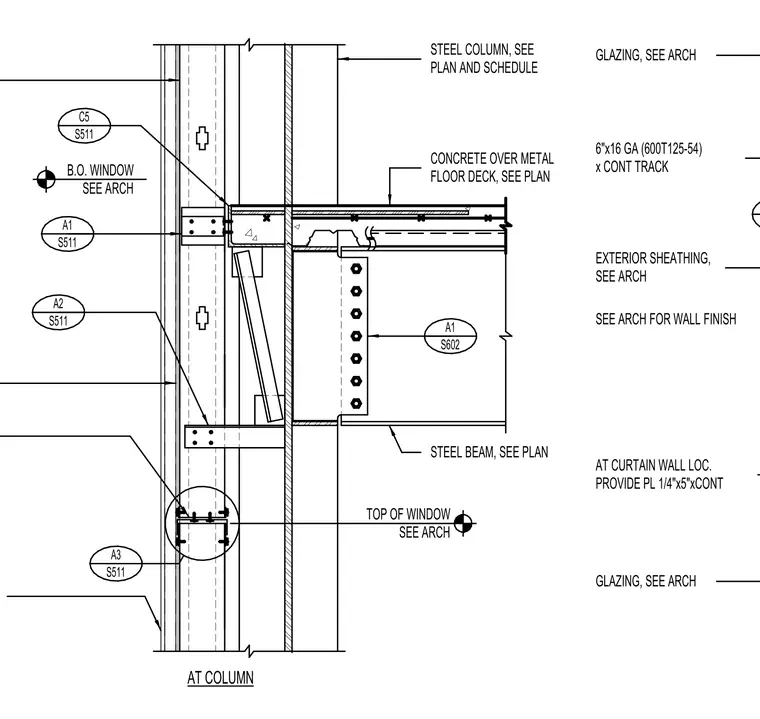

A steel beam frames into a steel column sized per plan, supported by a bolted shear tab connection. Concrete poured over a metal floor deck bears against the assembly at the floor level. A continuous 6-inch 16-gauge (600T125-54) track is installed for exterior framing. Exterior sheathing and wall finishes are provided per architectural specifications, with a continuous 1/4-inch by 5-inch plate provided at curtain wall locations.
