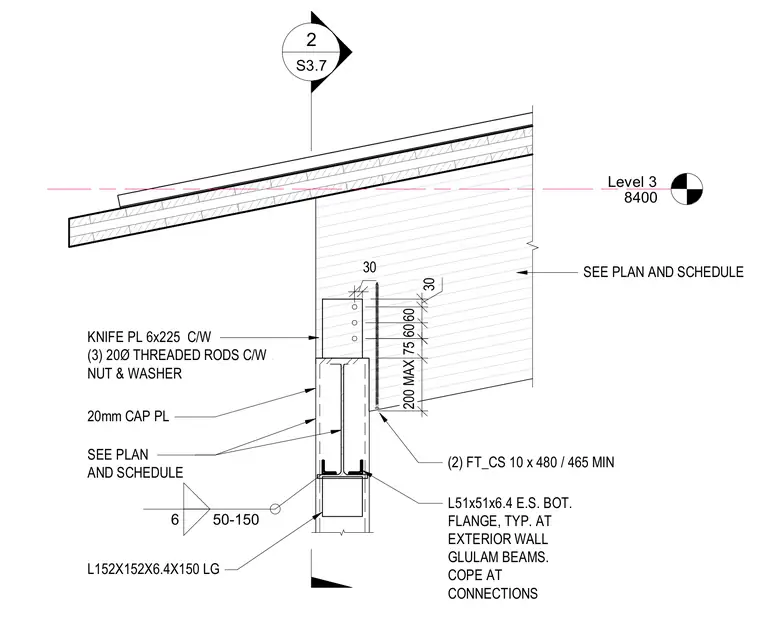

A glulam beam bears onto a structural steel column fitted with a twenty-millimeter cap plate and an angle support at the bottom flange. A six-by-two-hundred-twenty-five-millimeter knife plate slots into the glulam beam and secures with three twenty-millimeter diameter threaded rods complete with nuts and washers. An angle measuring fifty-one by fifty-one by six-point-four millimeters is provided at each side of the bottom flange, typical at exterior wall glulam beams with coped connections. Two fasteners secure the assembly through the members, sized per plan and schedule.
Level 3 8400 75 200 MAX 30 30 60 60 L51x51x6.4 E.S. BOT. FLANGE, TYP. AT EXTERIOR WALL GLULAM BEAMS. COPE AT CONNECTIONS KNIFE PL 6x225 C/W (3) 20Ø THREADED RODS C/W NUT & WASHER SEE PLAN AND SCHEDULE SEE PLAN AND SCHEDULE 6 50-150 20mm CAP PL S3.7 2 L152X152X6.4X150 LG (2) FT_CS 10 x 480 / 465 MIN
