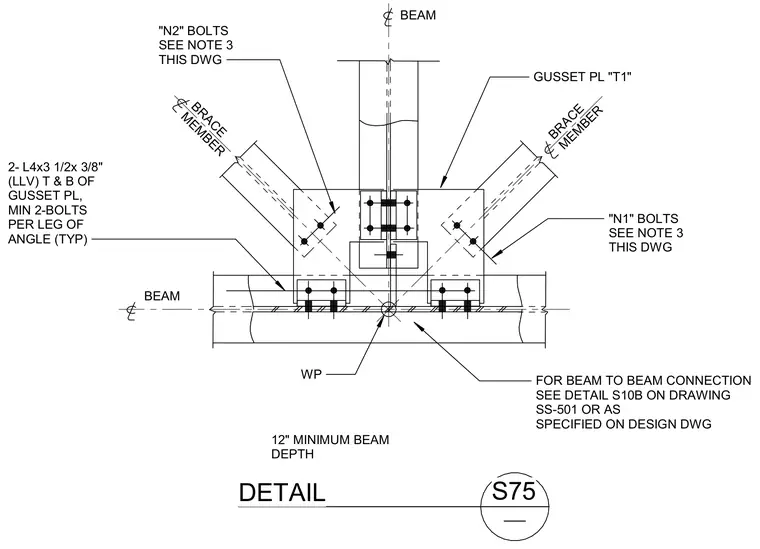

A braced frame connection utilizes a gusset plate welded or bolted to a horizontal steel beam supporting a vertical beam member. Two brace members composed of double angles connect to the gusset plate using specified bolts on both the top and bottom legs. The assembly requires a minimum beam depth and coordinates with a separate beam-to-beam connection detail.
DETAIL DETAIL S75 BRACE MEMBER BRACE MEMBER BEAM BEAM GUSSET PL "T1" WP 2- L4x3 1/2x 3/8" (LLV) T & B OF GUSSET PL, MIN 2-BOLTS PER LEG OF ANGLE (TYP) FOR BEAM TO BEAM CONNECTION SEE DETAIL S10B ON DRAWING SS-501 OR AS SPECIFIED ON DESIGN DWG "N1" BOLTS SEE NOTE 3 THIS DWG 12" MINIMUM BEAM DEPTH "N2" BOLTS SEE NOTE 3 THIS DWG
