Two concrete tilt-up wall panels meet at a corner with a joint width of one-half inch to three-quarters inch, verified with the architect. An eight-by-eight-inch by one-half-inch steel plate with two three-quarter-inch by five-inch headed stud anchors is embedded in the panel corner at the top and mid-height, with the top embed located below the roof deck. A four-by-three-by-three-eighths-inch angle measuring six inches long spans the corner joint and is welded with a five-sixteenth-inch typical fillet weld. Concrete tilt-up wall panel reinforcement is detailed per the structural schedules.

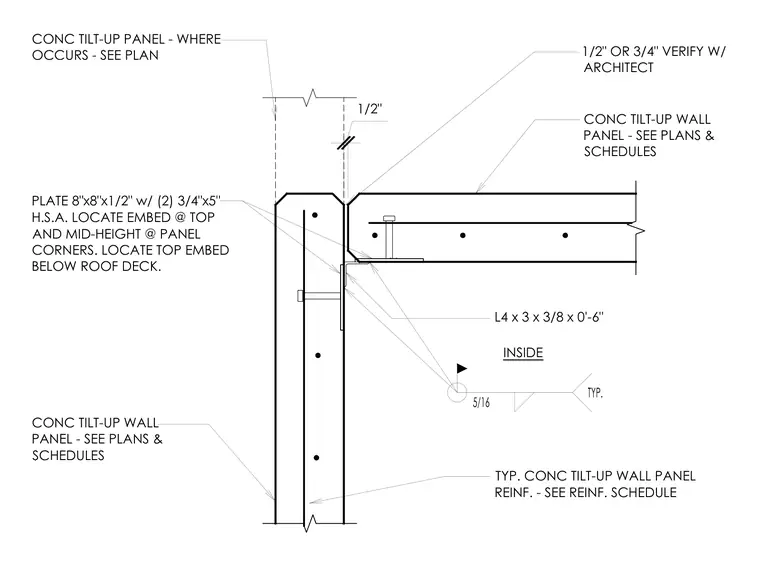

CONC TILT-UP WALL PANEL - SEE PLANS & SCHEDULES PLATE 8"x8"x1/2" w/ (2) 3/4"x5" H.S.A. LOCATE EMBED @ TOP AND MID-HEIGHT @ PANEL CORNERS. LOCATE TOP EMBED BELOW ROOF DECK. CONC TILT-UP WALL PANEL - SEE PLANS & SCHEDULES TYP. CONC TILT-UP WALL PANEL REINF. - SEE REINF. SCHEDULE L4 x 3 x 3/8 x 0'-6" CONC TILT-UP PANEL - WHERE OCCURS - SEE PLAN 1/2" OR 3/4" VERIFY W/ ARCHITECT 1/2" INSIDE
