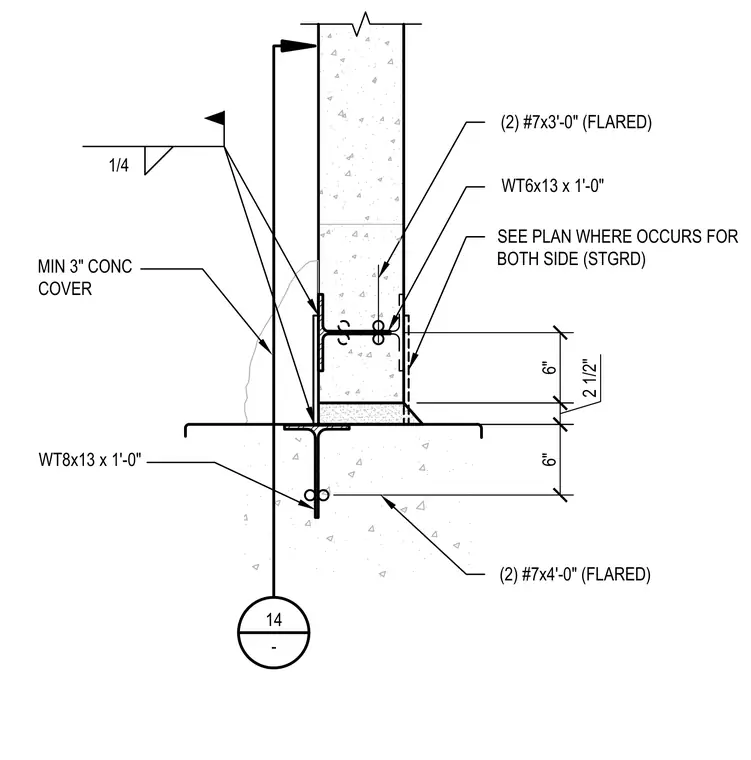

A precast or cast-in-place concrete wall panel bears onto a concrete footing utilizing embedded WT structural shapes for transfer. A WT6x13 section measuring one foot in length is embedded in the base of the wall panel, reinforced with two flared number 7 bars measuring three feet long and staggered as required per plan on both sides. A WT8x13 section measuring one foot in length is embedded in the concrete footing below, reinforced with two flared number 7 bars measuring four feet long. A quarter-inch fillet weld secures the embedded steel assembly with a minimum of three inches of concrete cover.
6" 6" WT8x13 x 1'-0" MIN 3" CONC COVER 2 1/2" (2) #7x3'-0" (FLARED) SEE PLAN WHERE OCCURS FOR BOTH SIDE (STGRD) WT6x13 x 1'-0" 14 - 1/4 (2) #7x4'-0" (FLARED)
