Shelf brackets are anchored at twenty-four inches on center with a maximum projection of one foot two inches. For steel stud walls, two number twelve sheet metal screws secure each bracket into backing per detail A on figure A-24. For wood stud walls, four-by-ten blocking is installed with Simpson A34 connectors at the top and bottom of each end to the stud. Brackets are spaced at twenty-four inches on center with backing provided by others.

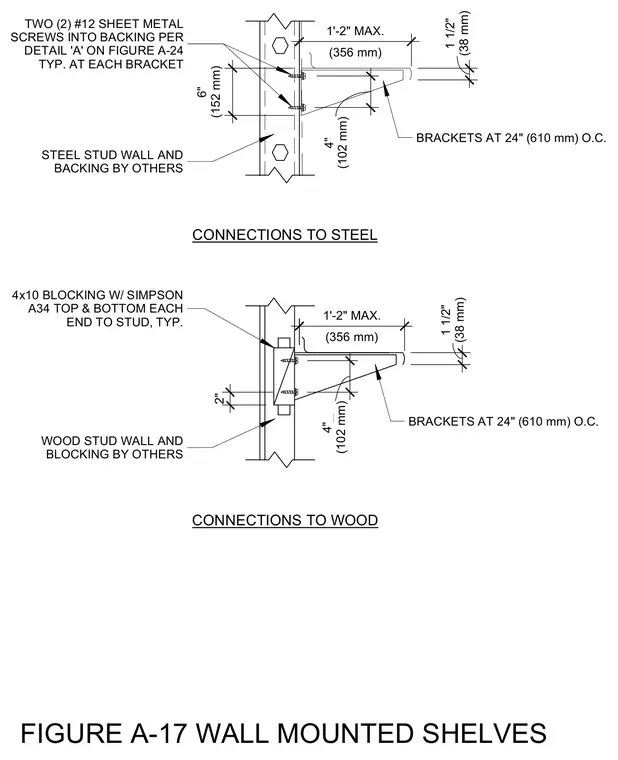

4x10 BLOCKING W/ SIMPSON A34 TOP & BOTTOM EACH END TO STUD, TYP. TWO (2) #12 SHEET METAL SCREWS INTO BACKING PER DETAIL 'A' ON FIGURE A-24 TYP. AT EACH BRACKET WOOD STUD WALL AND BLOCKING BY OTHERS STEEL STUD WALL AND BACKING BY OTHERS FIGURE A-17 WALL MOUNTED SHELVES CONNECTIONS TO WOOD CONNECTIONS TO STEEL BRACKETS AT 24" (610 mm) O.C. BRACKETS AT 24" (610 mm) O.C. 6" (152 mm) 4" (102 mm) (356 mm) 1'-2" MAX. 1 1/2" (38 mm) 1 1/2" (38 mm) (356 mm) 1'-2" MAX. (102 mm) 4" 2"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
