Pipe Grid Hanger Detail - Threaded Rod, Type 1

Materials

Steel

Elements

Beams Bracing Connections / Plates

Connections

Bracing Connection Bolted Connection

About this detail

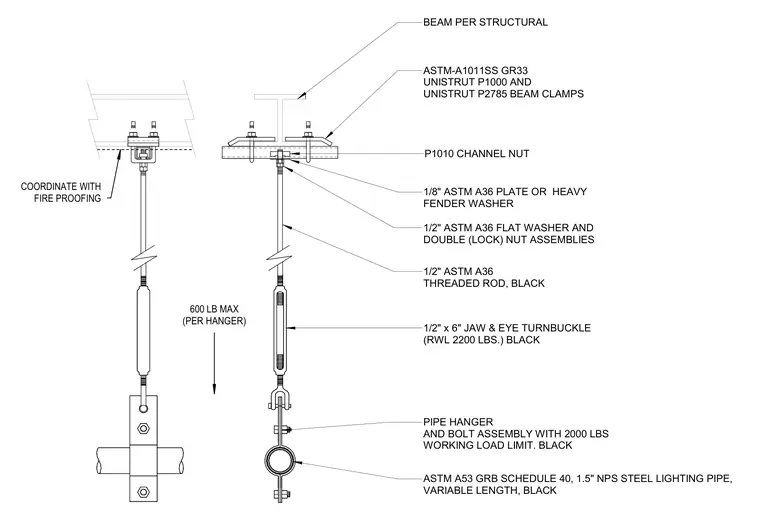

The assembly hangs from a structural steel beam using ASTM A1011SS Grade 33 Unistrut P1000 and P2785 beam clamps secured with P1010 channel nuts. A one-eighth-inch ASTM A36 plate or heavy fender washer sits below the channel, secured by a half-inch ASTM A36 flat washer and double lock nut assembly. A half-inch ASTM A36 black threaded rod extends down to a half-inch by six-inch black jaw and eye turnbuckle with a two thousand two hundred pound working load limit. Below the turnbuckle, a pipe hanger and bolt assembly with a two thousand pound working load limit supports an ASTM A53 Grade B Schedule 40 one-and-a-half-inch nominal pipe size steel lighting pipe of variable length. The hanger carries a six hundred pound maximum load per hanger and must coordinate with structural fireproofing.
