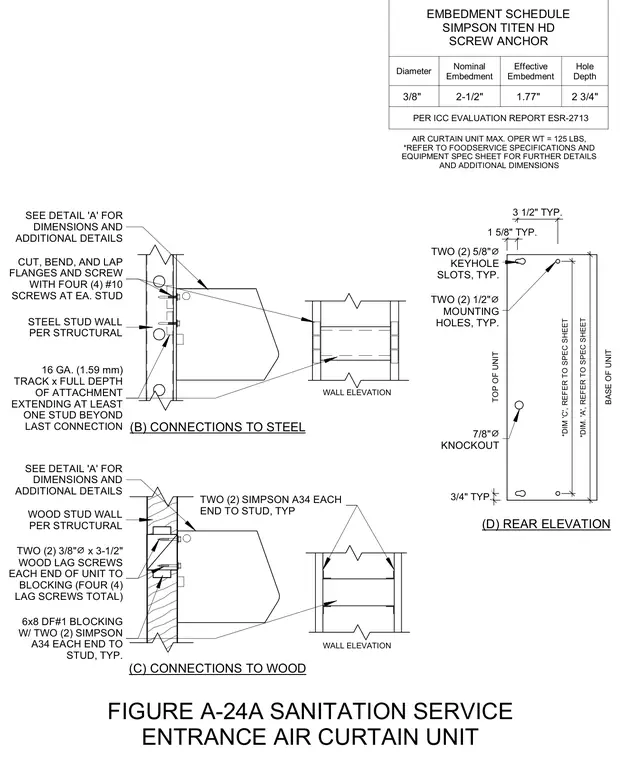

Figure A-24A Sanitation Service

Materials

Steel Timber / Wood

Elements

Walls Entrances Anchors / Embeds Connections / Plates

Connections

Embed Plate Timber / Mass-Timber Connection

About this detail

Mounting details for an entrance air curtain unit with a maximum operating weight of one hundred twenty-five pounds feature connections to both steel stud walls and wood stud walls. The steel stud connection utilizes a sixteen gauge track cut, bent, and lapped with four number ten screws at each stud, extending at least one stud beyond the last connection. The wood stud connection incorporates a six-by-eight Douglas Fir number one blocking secured with two Simpson A34 framing anchors at each end to the stud, anchored by two three-eighths-inch diameter by three-and-a-half-inch wood lag screws at each end for a total of four lag screws. An embedment schedule is provided for Simpson Titen HD screw anchors specifying a three-eighths-inch diameter with a two-and-a-half-inch nominal embedment. The rear elevation details keyhole slots, mounting holes, and knockouts for the unit installation.
