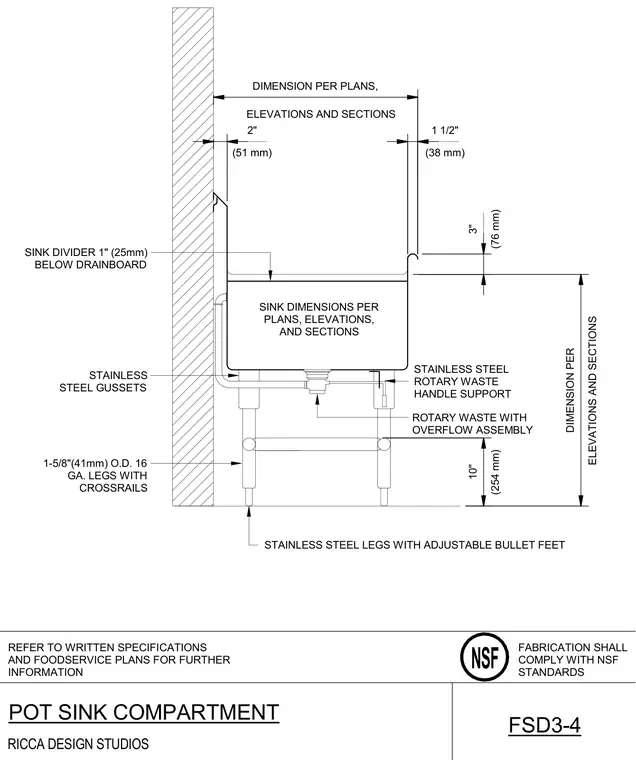

This food service detail shows a stainless steel pot sink compartment with a sink divider positioned one inch below the drainboard and a rotary waste handle support. The basin includes an NSF rotary waste with overflow assembly and is supported by stainless steel gussets. The unit stands on sixteen-gauge stainless steel legs of one and five-eighths inch outside diameter equipped with crossrails and adjustable bullet feet. Overall dimensions and sink compartment sizing are coordinated per the architectural plans, elevations, and sections.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF ROTARY WASTE WITH OVERFLOW ASSEMBLY STAINLESS STEEL LEGS WITH ADJUSTABLE BULLET FEET 1-5/8"(41mm) O.D. 16 GA. LEGS WITH CROSSRAILS STAINLESS STEEL GUSSETS SINK DIVIDER 1" (25mm) BELOW DRAINBOARD STAINLESS STEEL ROTARY WASTE HANDLE SUPPORT SINK DIMENSIONS PER PLANS, ELEVATIONS, AND SECTIONS ELEVATIONS AND SECTIONS DIMENSION PER PLANS, (51 mm) 2" (76 mm) 3" ELEVATIONS AND SECTIONS DIMENSION PER (38 mm) 1 1/2" (254 mm) 10" POT SINK COMPARTMENT FSD3-4
