Metal Stud Wall Stabilization Sleeve Connection

Materials

Steel Cold-formed Steel Metal (misc.)

Elements

Walls

Connections

Bolted Connection

About this detail

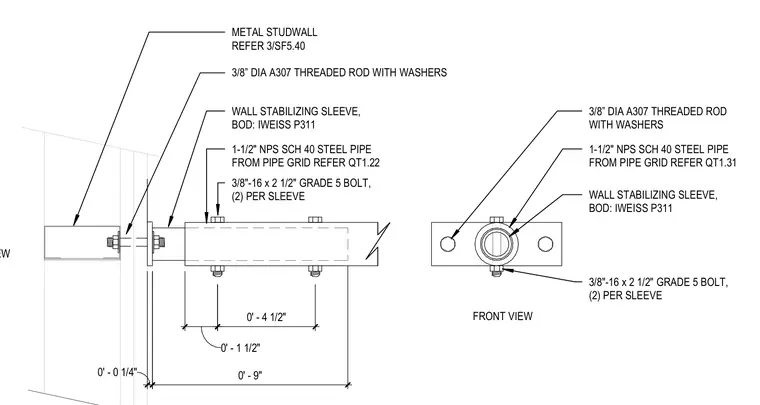

A wall stabilizing sleeve, specifically model IWeiss P311, connects a metal stud wall to an overhead pipe grid. The assembly is braced using one-and-a-half-inch nominal pipe size Schedule 40 steel pipes extending from the pipe grid. Three-eighths-inch diameter A307 threaded rods with washers anchor the components together. Two three-eighths-inch-16 by two-and-a-half-inch Grade 5 bolts are used per sleeve to secure the connection.
