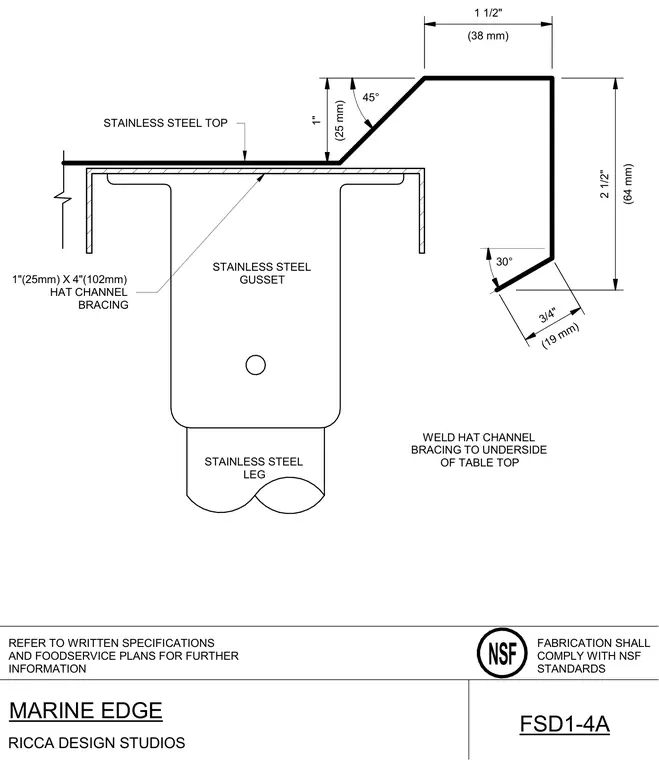

A stainless steel countertop marine edge profile features hat channel bracing welded to the underside. A stainless steel gusset and leg assembly connects beneath the framing to provide structural support. The edge profile incorporates specific geometric dimensions including a forty-five degree and thirty degree bevel, a one-and-a-half-inch top flange, and a two-and-a-half-inch overall drip depth. Fabrication complies with NSF standards.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF STAINLESS STEEL GUSSET STAINLESS STEEL LEG STAINLESS STEEL TOP WELD HAT CHANNEL BRACING TO UNDERSIDE OF TABLE TOP 1"(25mm) X 4"(102mm) HAT CHANNEL BRACING MARINE EDGE FSD1-4A (38 mm) 1 1/2" (64 mm) 2 1/2" (25 mm) 1" (19 mm) 3/4" 45° 30°
