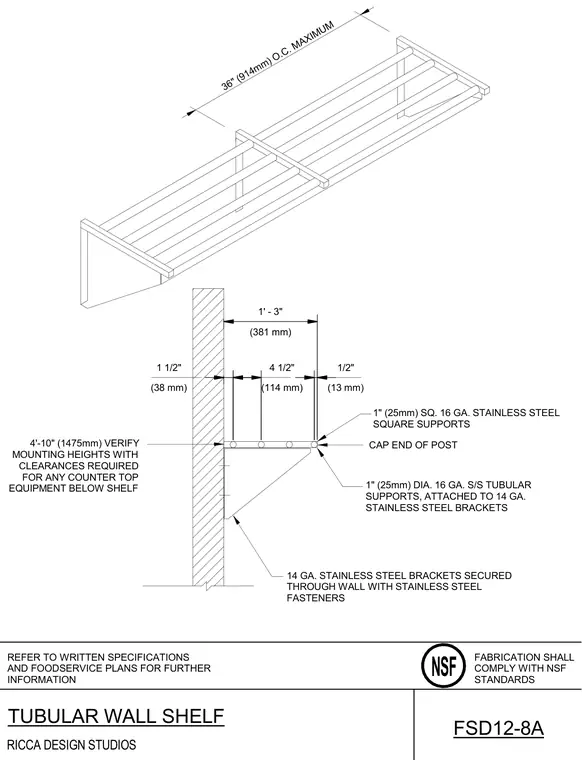

A stainless steel tubular wall shelf is mounted to a wall using fourteen-gauge stainless steel brackets secured through the wall with stainless steel fasteners. The shelf assembly incorporates one-inch diameter sixteen-gauge stainless steel tubular supports attached to the brackets, alongside one-inch square sixteen-gauge stainless steel square supports with capped ends. The shelf is spaced with a maximum of thirty-six inches on center between supports and features a depth of one foot three inches. Mounting heights must be verified with clearances required for any countertop equipment located below the shelf.
NSF REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS 1" (25mm) SQ. 16 GA. STAINLESS STEEL SQUARE SUPPORTS CAP END OF POST 1" (25mm) DIA. 16 GA. S/S TUBULAR SUPPORTS, ATTACHED TO 14 GA. STAINLESS STEEL BRACKETS 14 GA. STAINLESS STEEL BRACKETS SECURED THROUGH WALL WITH STAINLESS STEEL FASTENERS 4'-10" (1475mm) VERIFY MOUNTING HEIGHTS WITH CLEARANCES REQUIRED FOR ANY COUNTER TOP EQUIPMENT BELOW SHELF 36" (914mm) O.C. MAXIMUM (38 mm) 1 1/2" (114 mm) 4 1/2" (13 mm) 1/2" (381 mm) 1' - 3" TUBULAR WALL SHELF FSD12-8A
