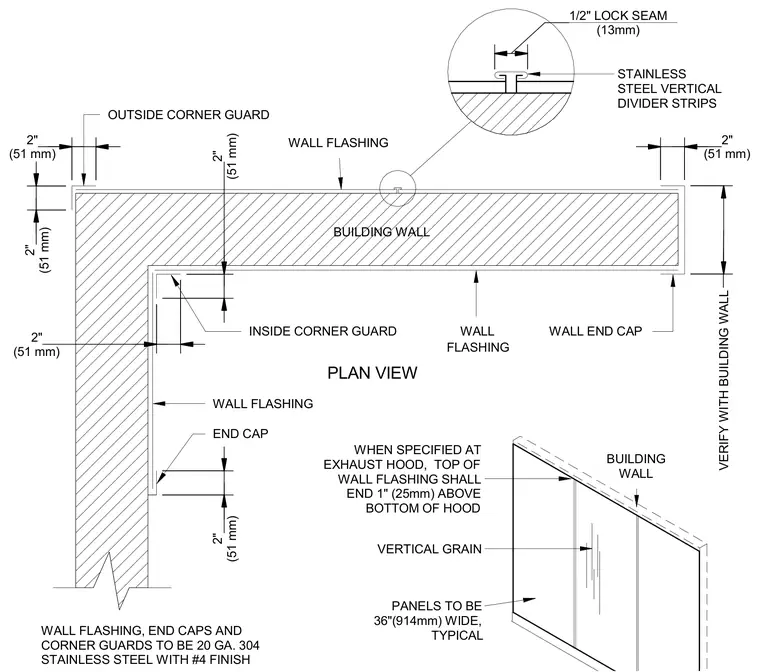

Stainless steel wall flashing panels are fabricated from twenty gauge three hundred and four stainless steel with a number four finish. Panels measure thirty-six inches wide with typical vertical grain and join via one-half inch lock seams with stainless steel vertical divider strips. Inside and outside corner guards are installed with two-inch returns. Wall flashing, end caps, and corner guards terminate per dimensions shown and verify with building wall conditions.
(13mm) 1/2" LOCK SEAM (51 mm) 2" (51 mm) 2" (51 mm) 2" (51 mm) 2" (51 mm) 2" (51 mm) 2" VERIFY WITH BUILDING WALL WALL FLASHING INSIDE CORNER GUARD WALL FLASHING WALL FLASHING END CAP WALL END CAP OUTSIDE CORNER GUARD WALL FLASHING, END CAPS AND CORNER GUARDS TO BE 20 GA. 304 STAINLESS STEEL WITH #4 FINISH PLAN VIEW PANELS TO BE 36"(914mm) WIDE, TYPICAL VERTICAL GRAIN STAINLESS STEEL VERTICAL DIVIDER STRIPS WHEN SPECIFIED AT EXHAUST HOOD, TOP OF WALL FLASHING SHALL END 1" (25mm) ABOVE BOTTOM OF HOOD BUILDING WALL BUILDING WALL
