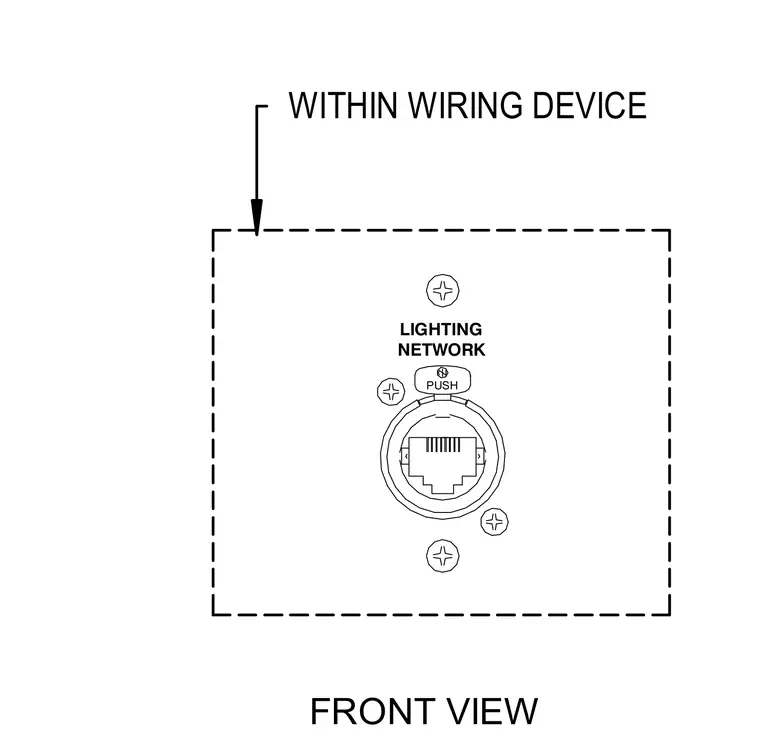

This elevation detail shows the front view of a lighting network push button installed within a wiring device. The assembly features a central data jack and push button mechanism enclosed within a faceplate secured by four mounting screws.
