Mechanical · Q-RGM8V

Separation Air Curtain Unit

Materials

Steel Timber / Wood

Elements

Walls Anchors / Embeds Connections / Plates

Connections

Embed Plate Timber / Mass-Timber Connection

About this detail

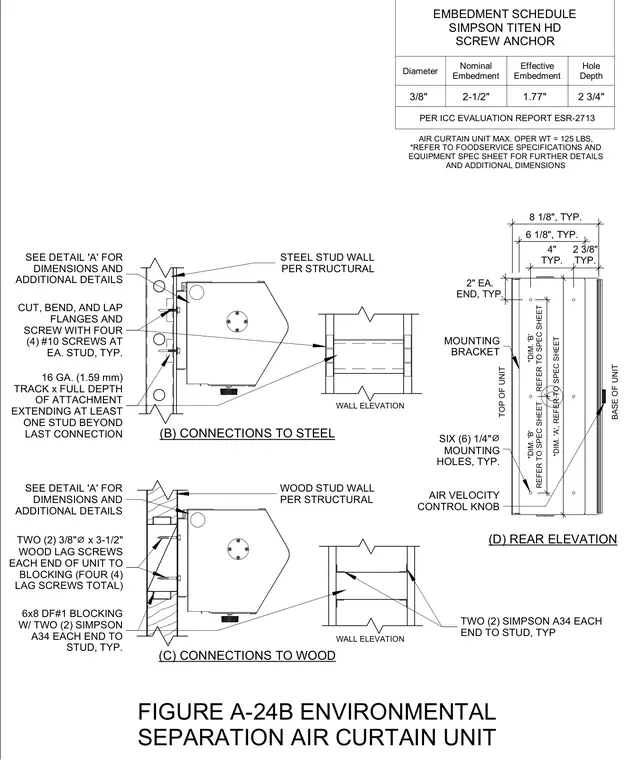

An environmental separation air curtain unit weighing a maximum of 125 pounds is mounted to either a steel stud wall or a wood stud wall per structural specifications. For steel stud installations, 16-gauge track extends the full depth of attachment and at least one stud beyond the last connection, secured with cut, bent, and lapped flanges fastened with four number 10 screws at each stud. For wood stud installations, 6x8 Douglas Fir number 1 ledger blocking is fastened to studs using two Simpson A34 framing anchors at each end, with the air curtain unit secured by two 3/8-inch diameter by 3-1/2-inch wood lag screws at each end for a total of four lag screws. The rear elevation displays the mounting bracket with six 1/4-inch diameter mounting holes and the air velocity control knob.
