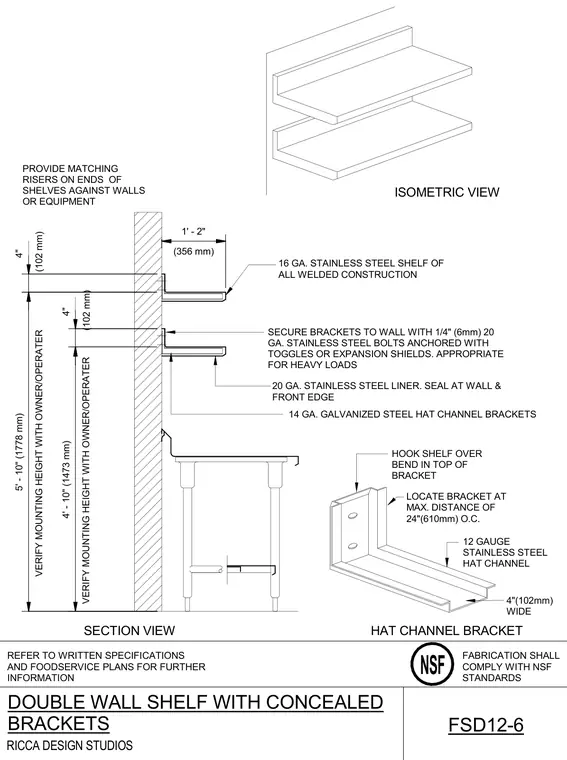

A double wall-mounted shelf assembly features concealed support brackets anchored to a wall. The shelves are constructed from sixteen-gauge stainless steel with an all-welded construction and include a twenty-gauge stainless steel liner sealed at the wall and front edge. Fourteen-gauge galvanized steel hat channel brackets support the shelves, with the shelves hooked over the bend at the top of each bracket. Brackets are spaced at a maximum distance of twenty-four inches on center and secured to the wall using one-quarter-inch stainless steel bolts anchored with toggles or expansion shields suitable for heavy loads. Matching risers are provided on the ends of shelves adjacent to walls or equipment.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF PROVIDE MATCHING RISERS ON ENDS OF SHELVES AGAINST WALLS OR EQUIPMENT SECURE BRACKETS TO WALL WITH 1/4" (6mm) 20 GA. STAINLESS STEEL BOLTS ANCHORED WITH TOGGLES OR EXPANSION SHIELDS. APPROPRIATE FOR HEAVY LOADS 20 GA. STAINLESS STEEL LINER. SEAL AT WALL & FRONT EDGE 14 GA. GALVANIZED STEEL HAT CHANNEL BRACKETS HOOK SHELF OVER BEND IN TOP OF BRACKET 12 GAUGE STAINLESS STEEL HAT CHANNEL ISOMETRIC VIEW HAT CHANNEL BRACKET SECTION VIEW LOCATE BRACKET AT MAX. DISTANCE OF 24"(610mm) O.C. 4"(102mm) WIDE 16 GA. STAINLESS STEEL SHELF OF ALL WELDED CONSTRUCTION 4" (102 mm) 4" VERIFY MOUNTING HEIGHT WITH OWNER/OPERATER 4' - 10" (1473 mm) VERIFY MOUNTING HEIGHT WITH OWNER/OPERATER 5' - 10" (1778 mm) (356 mm) 1' - 2" DOUBLE WALL SHELF WITH CONCEALED BRACKETS FSD12-6 (102 mm)
