An island work table features a 14-gauge stainless steel top supported by stainless steel gussets and 1-inch by 4-inch 14-gauge channel reinforcing. The 16-gauge stainless steel undershelf includes matching 1-inch by 4-inch 14-gauge channel reinforcing and sits on 1-5/8-inch outside diameter 16-gauge legs and crossrails. The assembly rests on stainless steel adjustable bullet feet or casters as specified, complying with NSF standards.

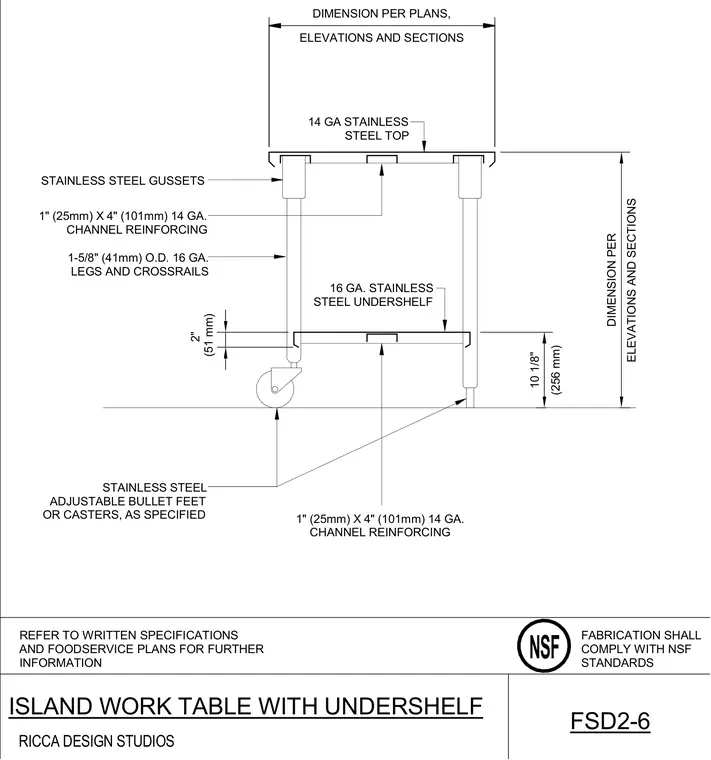

REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF STAINLESS STEEL GUSSETS 1-5/8" (41mm) O.D. 16 GA. LEGS AND CROSSRAILS 1" (25mm) X 4" (101mm) 14 GA. CHANNEL REINFORCING 14 GA STAINLESS STEEL TOP 16 GA. STAINLESS STEEL UNDERSHELF 1" (25mm) X 4" (101mm) 14 GA. CHANNEL REINFORCING STAINLESS STEEL ADJUSTABLE BULLET FEET OR CASTERS, AS SPECIFIED ELEVATIONS AND SECTIONS DIMENSION PER PLANS, DIMENSION PER ELEVATIONS AND SECTIONS 10 1/8" (256 mm) 2" (51 mm) ISLAND WORK TABLE WITH UNDERSHELF FSD2-6
