A stainless steel dishtable drainboard fabrication complying with NSF standards. The assembly features a fourteen-gauge stainless steel top supported by one-inch by four-inch fourteen-gauge channel reinforcing. One-and-five-eighth-inch outside diameter sixteen-gauge legs and crossrails provide structural support, complete with stainless steel gussets and adjustable bullet feet at the base. A sixteen-gauge stainless steel undershelf or open base is included as specified, reinforced with additional channel sections. Dimensions and layout configurations are coordinated per plans, elevations, and sections.

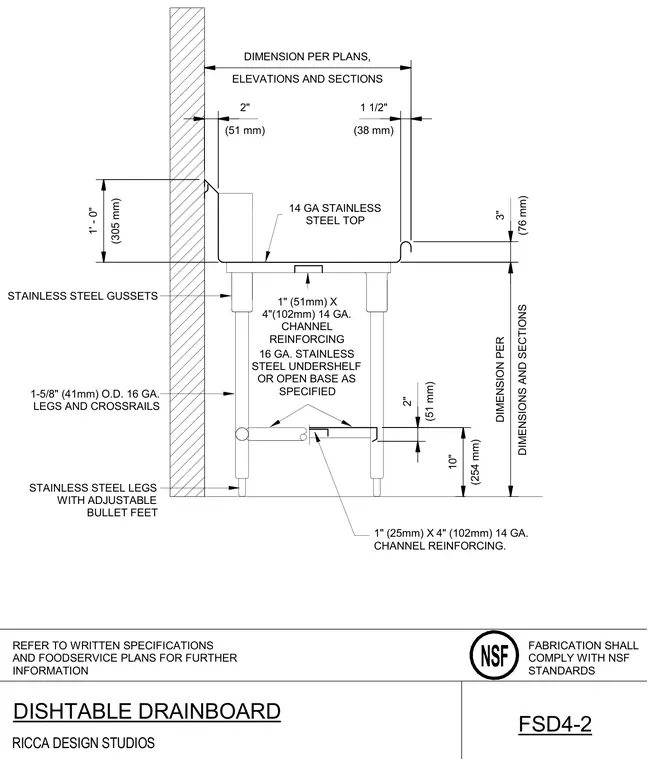

REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF STAINLESS STEEL GUSSETS 1-5/8" (41mm) O.D. 16 GA. LEGS AND CROSSRAILS 1" (51mm) X 4"(102mm) 14 GA. CHANNEL REINFORCING 16 GA. STAINLESS STEEL UNDERSHELF OR OPEN BASE AS SPECIFIED 1" (25mm) X 4" (102mm) 14 GA. CHANNEL REINFORCING. 14 GA STAINLESS STEEL TOP STAINLESS STEEL LEGS WITH ADJUSTABLE BULLET FEET ELEVATIONS AND SECTIONS DIMENSION PER PLANS, (76 mm) 3" DIMENSIONS AND SECTIONS DIMENSION PER (38 mm) 1 1/2" (51 mm) 2" (51 mm) 2" (254 mm) 10" (305 mm) 1' - 0" DISHTABLE DRAINBOARD FSD4-2
