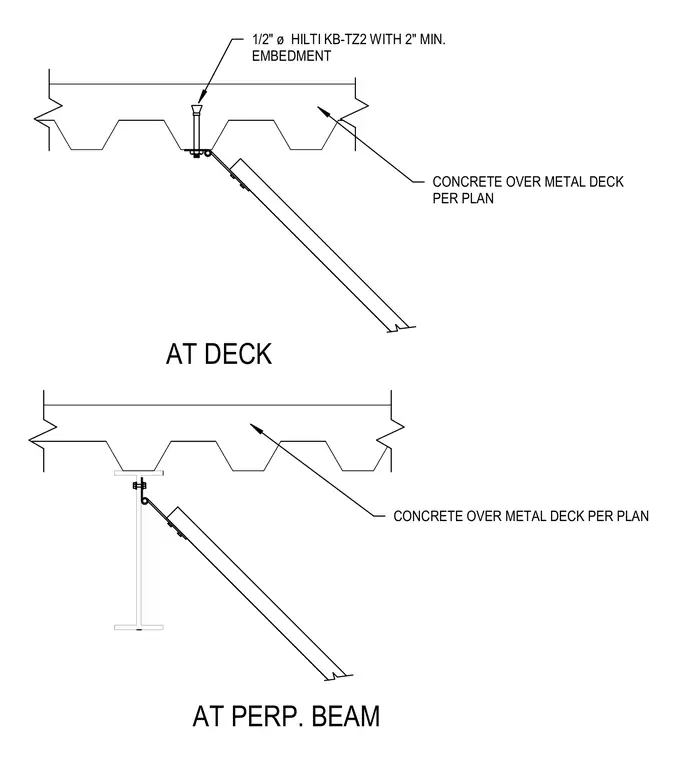

The assembly comprises a concrete slab over a metal deck anchored by a one-half inch diameter Hilti KB-TZ2 wedge anchor with two inches minimum embedment at the deck, and a similar concrete over metal deck assembly supported at a perpendicular structural steel beam. The concrete slab is specified per plan for both conditions.
1/2" ø HILTI KB-TZ2 WITH 2" MIN. EMBEDMENT CONCRETE OVER METAL DECK PER PLAN AT DECK CONCRETE OVER METAL DECK PER PLAN AT PERP. BEAM
