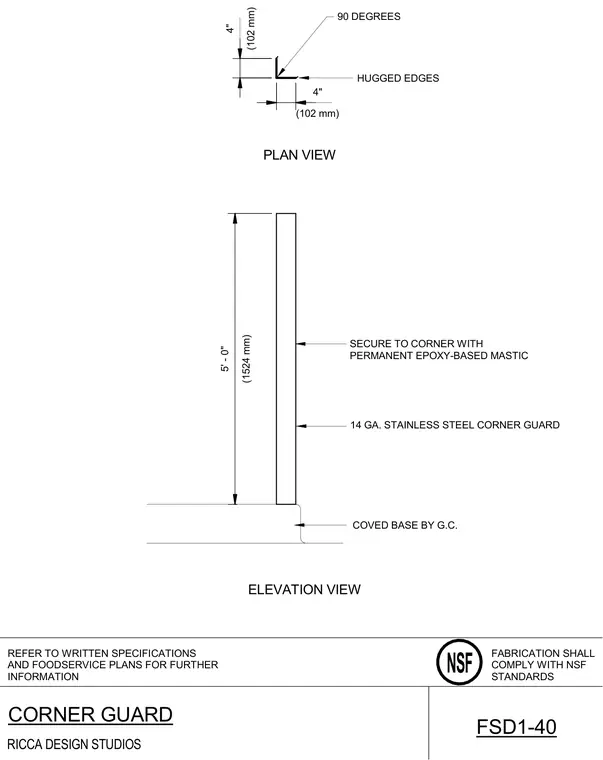

A 14-gauge stainless steel corner guard is formed with 4-inch legs at a 90-degree angle and hugged edges. The guard spans 5'-0" vertically above a coved base provided by the general contractor. The assembly is secured to the corner using permanent epoxy-based mastic.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF (102 mm) 4" (102 mm) 4" (1524 mm) 5' - 0" CORNER GUARD FSD1-40 14 GA. STAINLESS STEEL CORNER GUARD PLAN VIEW ELEVATION VIEW COVED BASE BY G.C. HUGGED EDGES SECURE TO CORNER WITH PERMANENT EPOXY-BASED MASTIC 90 DEGREES
