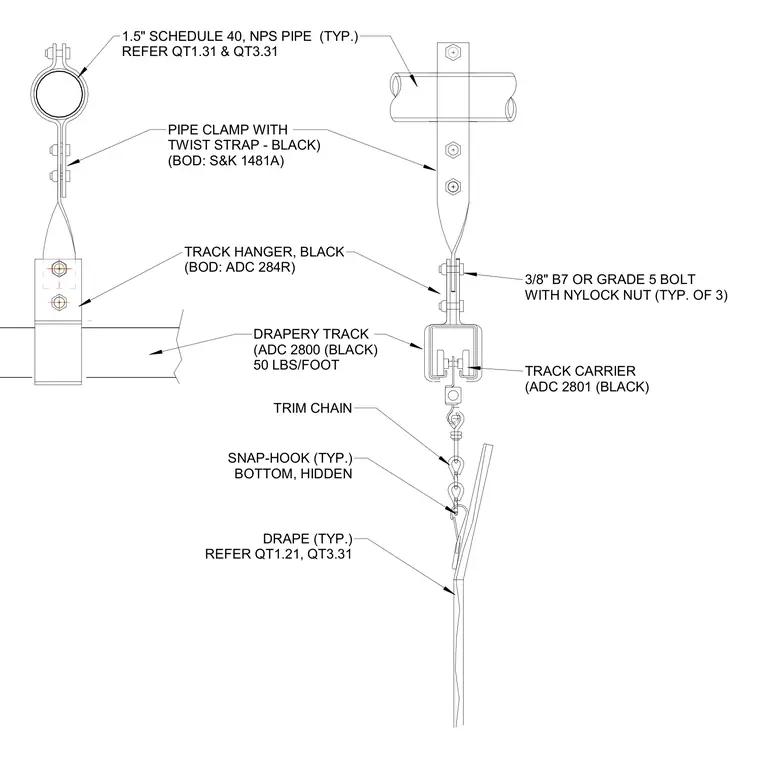

A 1.5-inch schedule 40 nominal pipe size pipe serves as the overhead support, connected to a pipe clamp with a black twist strap. A black track hanger attaches to the twist strap using three 3/8-inch B7 or Grade 5 bolts with nylock nuts. The drapery track connects directly into the track hanger. A trim chain hangs down from the track carrier, securing the drape via a snap-hook.
1.5" SCHEDULE 40, NPS PIPE (TYP.) REFER QT1.31 & QT3.31 PIPE CLAMP WITH TWIST STRAP - BLACK) (BOD: S&K 1481A) TRACK HANGER, BLACK (BOD: ADC 284R) SNAP-HOOK (TYP.) BOTTOM, HIDDEN DRAPE (TYP.) REFER QT1.21, QT3.31 3/8" B7 OR GRADE 5 BOLT WITH NYLOCK NUT (TYP. OF 3) DRAPERY TRACK (ADC 2800 (BLACK) 50 LBS/FOOT TRACK CARRIER (ADC 2801 (BLACK) TRIM CHAIN
