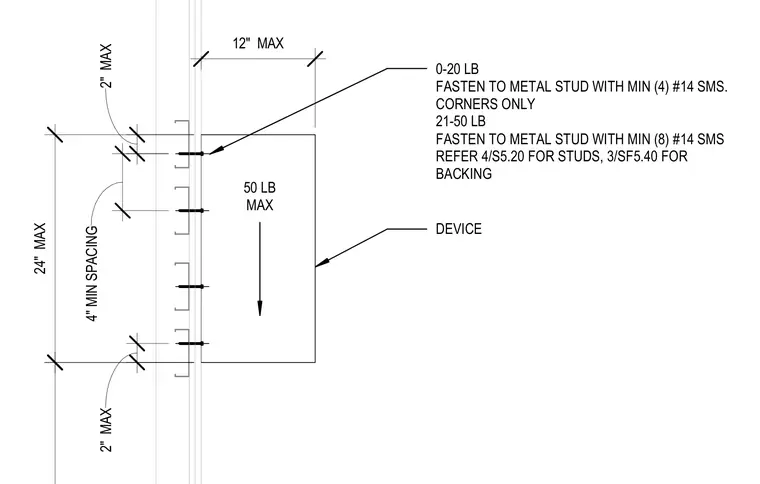

Equipment weighing up to fifty pounds maximum is fastened directly to cold-formed steel metal studs using sheet metal screws. Devices weighing zero to twenty pounds require a minimum of four number fourteen screws, while units weighing twenty-one to fifty pounds require a minimum of eight number fourteen screws restricted to corners only. Spacing is governed by maximum twelve inch horizontal and twenty-four inch vertical dimensions with four inch minimum fastener spacing and two inch maximum edge clearances. Framing requires referencing structural sheets for stud and backing specifications.
50 LB MAX 12" MAX 24" MAX DEVICE 0-20 LB FASTEN TO METAL STUD WITH MIN (4) #14 SMS. CORNERS ONLY 21-50 LB FASTEN TO METAL STUD WITH MIN (8) #14 SMS REFER 4/S5.20 FOR STUDS, 3/SF5.40 FOR BACKING 2" MAX 2" MAX 4" MIN SPACING
