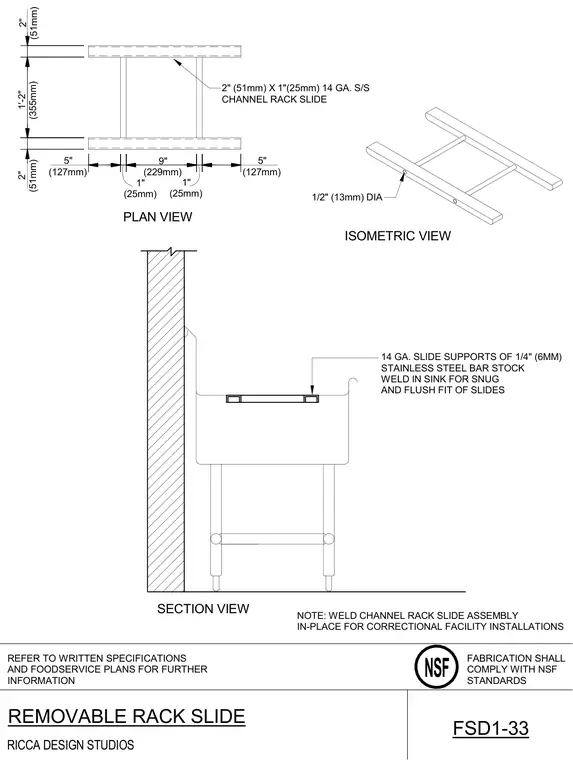

A removable rack slide assembly configured with two-inch by one-inch fourteen-gauge stainless steel channel rack slides and fourteen-gauge slide supports made of quarter-inch stainless steel bar stock. The assembly features a one-half-inch diameter hole and is welded into the sink for a snug and flush fit of the slides. The channel rack slide assembly is welded in place specifically for correctional facility installations.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF . . . . . . . . REMOVABLE RACK SLIDE FSD1-33 PLAN VIEW ISOMETRIC VIEW SECTION VIEW 1/2" (13mm) DIA 2" (51mm) X 1"(25mm) 14 GA. S/S CHANNEL RACK SLIDE 14 GA. SLIDE SUPPORTS OF 1/4" (6MM) STAINLESS STEEL BAR STOCK WELD IN SINK FOR SNUG AND FLUSH FIT OF SLIDES NOTE: WELD CHANNEL RACK SLIDE ASSEMBLY IN-PLACE FOR CORRECTIONAL FACILITY INSTALLATIONS 1'-2" (355mm) 9" (229mm) 2" (51mm) 2" (51mm) 5" (127mm) 1" (25mm) 1" (25mm) 5" (127mm)
