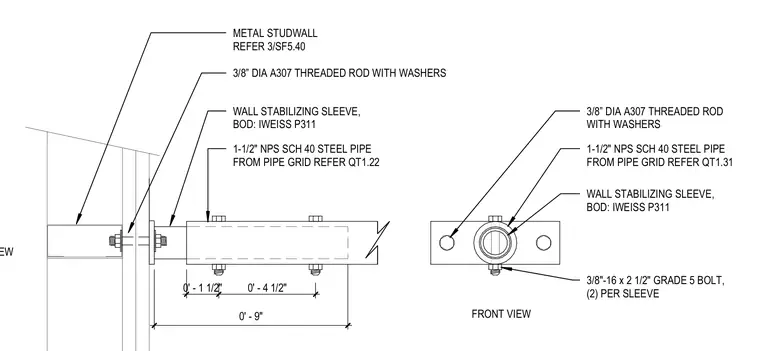

An I Weiss P311 wall stabilizing sleeve connects a 1-1/2 inch NPS schedule 40 steel pipe from the overhead pipe grid to a metal stud wall. The assembly secures the pipe using 3/8-16 by 2-1/2 inch Grade 5 bolts, with two bolts per sleeve. Connection to the stud wall is anchored by 3/8 inch diameter A307 threaded rods with washers.
1-1/2" NPS SCH 40 STEEL PIPE FROM PIPE GRID REFER QT1.22 3/8” DIA A307 THREADED ROD WITH WASHERS METAL STUDWALL REFER 3/SF5.40 1-1/2" NPS SCH 40 STEEL PIPE FROM PIPE GRID REFER QT1.31 WALL STABILIZING SLEEVE, BOD: IWEISS P311 WALL STABILIZING SLEEVE, BOD: IWEISS P311 0' - 9" 3/8” DIA A307 THREADED ROD WITH WASHERS 3/8"-16 x 2 1/2" GRADE 5 BOLT, (2) PER SLEEVE SIDE VIEW FRONT VIEW 0' - 1 1/2" 0' - 4 1/2"
