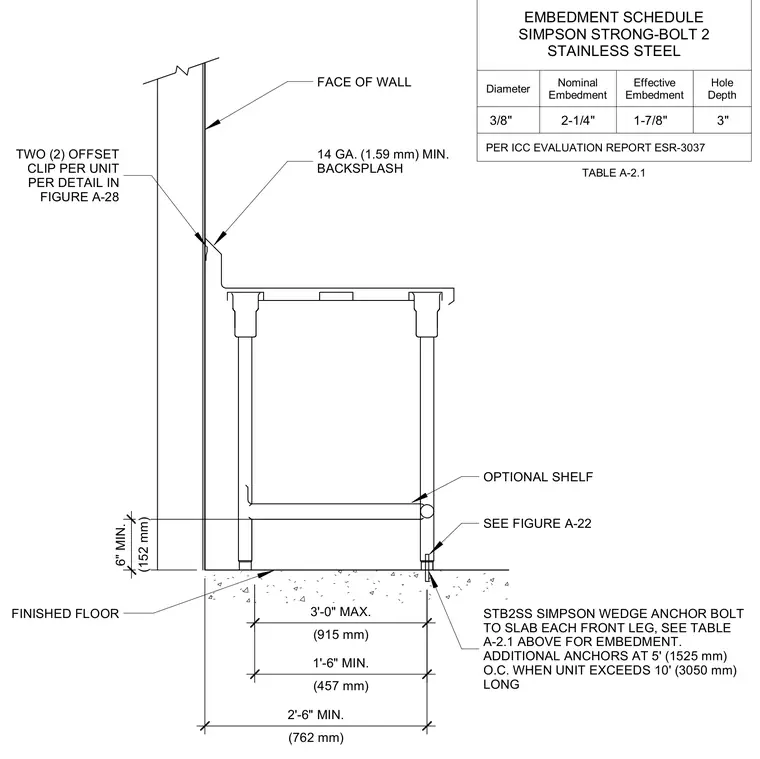

The stainless steel work table features a minimum fourteen gauge backsplash secured to the wall face using two offset clips per unit. The front legs anchor to the concrete slab using Simpson Strong-Bolt 2 stainless steel wedge anchor bolts with a three-eighths inch nominal diameter, two-and-one-quarter inch nominal embedment, one-and-seven-eighths inch effective embedment, and three-inch hole depth. Additional anchors are spaced at five feet on center when the unit length exceeds ten feet. An optional lower shelf is included, and the entire assembly sits above the finished floor.
STB2SS SIMPSON WEDGE ANCHOR BOLT TO SLAB EACH FRONT LEG, SEE TABLE A-2.1 ABOVE FOR EMBEDMENT. ADDITIONAL ANCHORS AT 5' (1525 mm) O.C. WHEN UNIT EXCEEDS 10' (3050 mm) LONG SEE FIGURE A-22 OPTIONAL SHELF 14 GA. (1.59 mm) MIN. BACKSPLASH FACE OF WALL (915 mm) 3'-0" MAX. (457 mm) 1'-6" MIN. (762 mm) 2'-6" MIN. FINISHED FLOOR TWO (2) OFFSET CLIP PER UNIT PER DETAIL IN FIGURE A-28 (152 mm) 6" MIN. EMBEDMENT SCHEDULE SIMPSON STRONG-BOLT 2 STAINLESS STEEL Diameter Nominal Embedment Effective Embedment Hole Depth PER ICC EVALUATION REPORT ESR-3037 3/8" 2-1/4" 1-7/8" 3" TABLE A-2.1
