Offset Clips for Equipment Backsplash Connections

Materials

Elements

Walls Connections / Plates Roof / Floor Openings

About this detail

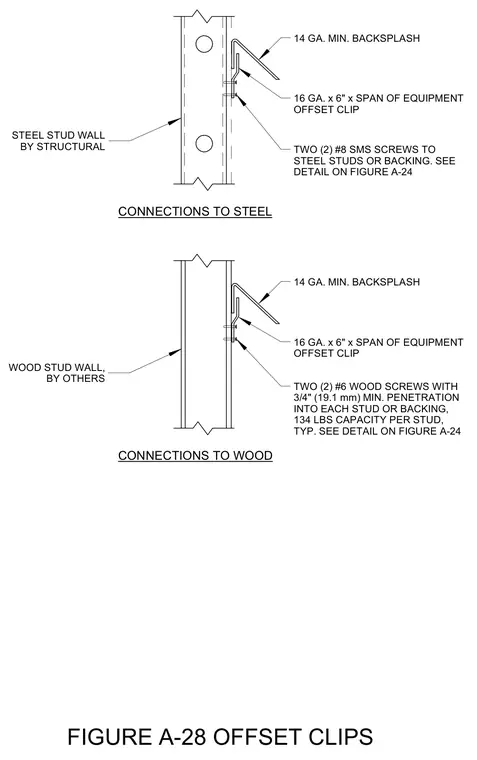

An equipment offset clip measuring sixteen gauge by six inches by the span of the equipment secures a fourteen gauge minimum backsplash to either a steel stud wall or a wood stud wall. For steel stud connections, two number eight sheet metal screws fasten the clip to the steel studs or backing. For wood stud connections, two number six wood screws provide a three-quarter inch minimum penetration into each stud or backing, yielding one hundred thirty-four pounds of capacity per stud typical.
