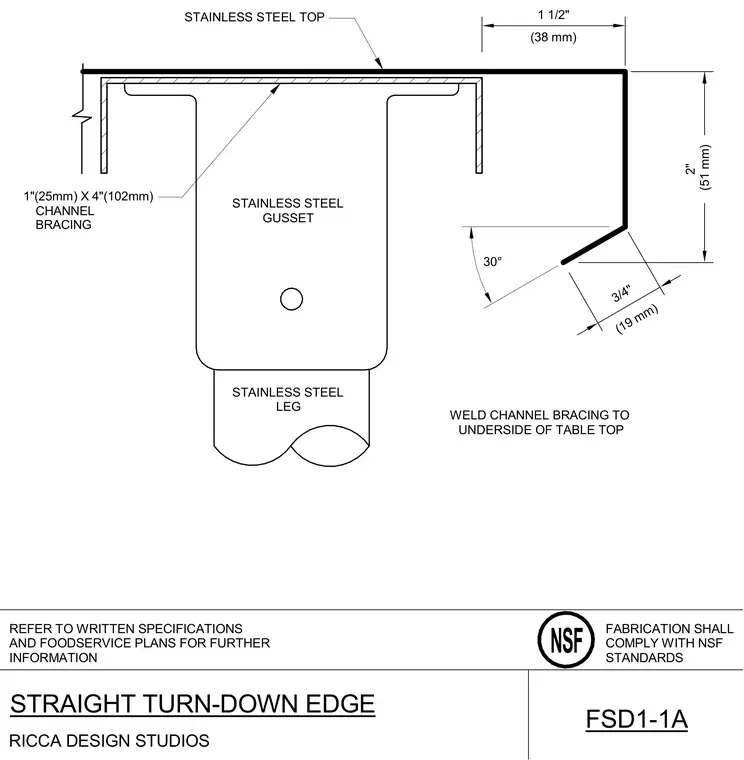

A straight turn-down edge for a stainless steel food service countertop. A 1 inch by 4 inch channel bracing is welded to the underside of the stainless steel top. A stainless steel gusset and leg support the assembly, with the channel bracing welded directly to the underside of the table top. The edge turns down 2 inches with a 1 1/2 inch projection and a 3/4 inch hem angled at 30 degrees.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF 1 1/2" (38 mm) 2" (51 mm) 3/4" (19 mm) STAINLESS STEEL GUSSET STAINLESS STEEL LEG WELD CHANNEL BRACING TO UNDERSIDE OF TABLE TOP STAINLESS STEEL TOP 1"(25mm) X 4"(102mm) CHANNEL BRACING STRAIGHT TURN-DOWN EDGE FSD1-1A 30°
