Continuous twenty gauge screwable furring channels connect to steel stud walls using two number ten sheet metal screws at sixteen inches on center to each stud. Similar continuous twenty gauge furring channels connect to wood stud walls using two number ten sheet metal screws at sixteen inches on center. Connections to concrete walls utilize continuous twenty gauge screwable furring channels fastened with two three-sixteenths inch concrete screws at sixteen inches on center. All furring channels receive number ten sheet metal screws spaced eight inches on center.

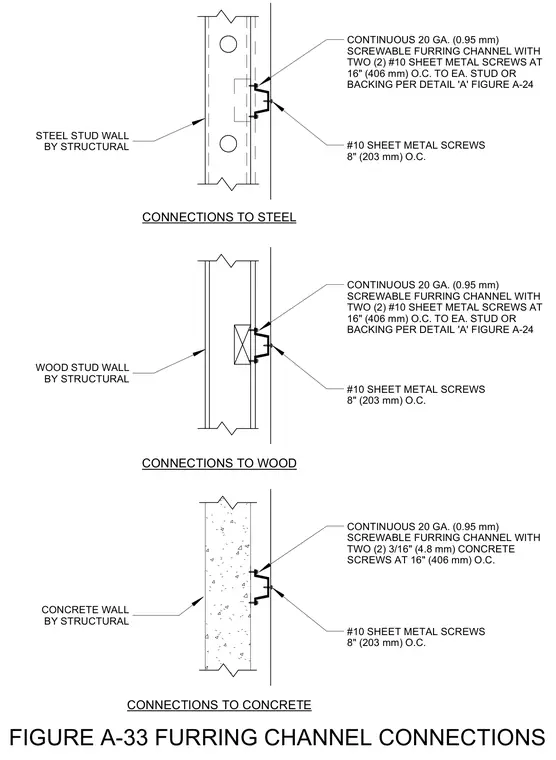

CONCRETE WALL BY STRUCTURAL WOOD STUD WALL BY STRUCTURAL STEEL STUD WALL BY STRUCTURAL FIGURE A-33 FURRING CHANNEL CONNECTIONS CONNECTIONS TO CONCRETE CONNECTIONS TO WOOD CONNECTIONS TO STEEL #10 SHEET METAL SCREWS 8" (203 mm) O.C. CONTINUOUS 20 GA. (0.95 mm) SCREWABLE FURRING CHANNEL WITH TWO (2) #10 SHEET METAL SCREWS AT 16" (406 mm) O.C. TO EA. STUD OR BACKING PER DETAIL 'A' FIGURE A-24 #10 SHEET METAL SCREWS 8" (203 mm) O.C. #10 SHEET METAL SCREWS 8" (203 mm) O.C. CONTINUOUS 20 GA. (0.95 mm) SCREWABLE FURRING CHANNEL WITH TWO (2) #10 SHEET METAL SCREWS AT 16" (406 mm) O.C. TO EA. STUD OR BACKING PER DETAIL 'A' FIGURE A-24 CONTINUOUS 20 GA. (0.95 mm) SCREWABLE FURRING CHANNEL WITH TWO (2) 3/16" (4.8 mm) CONCRETE SCREWS AT 16" (406 mm) O.C.
