Architectural · Q-FHQD8

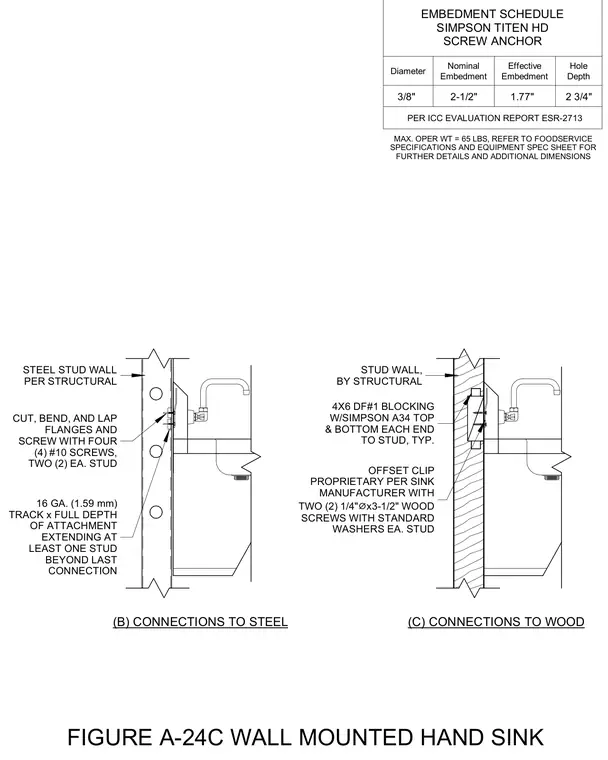

Figure A-24C Wall Mounted Hand Sink

Materials

Steel Timber / Wood

Elements

Walls Anchors / Embeds Connections / Plates

Connections

Embed Plate Timber / Mass-Timber Connection

About this detail

Wall-mounted hand sink attachment methods for both steel stud and wood stud framing conditions are implemented. The steel stud connection utilizes a 16 gauge track spanning the full depth of attachment and extending at least one stud beyond the last connection, with cut, bent, and lapped flanges secured by four number ten screws, two per stud. The wood framing condition incorporates four by six Douglas Fir number one blocking secured with Simpson A34 framing anchors at the top and bottom of each end to the stud. A proprietary offset clip provided by the sink manufacturer is fastened with two quarter-inch diameter by three-and-a-half-inch wood screws with standard washers at each stud. An embedment schedule is provided for Simpson Titen HD screw anchors specifying a three-eighth-inch diameter, two-and-a-half-inch nominal embedment, one-point-seven-seven-inch effective embedment, and two-and-three-quarter-inch hole depth per ICC evaluation report ESR-2713. The maximum operating weight is designated as sixty-five pounds.
