Hose reel mounting connections attach to steel stud walls, wood stud walls, and concrete walls. Steel stud connections utilize two minimum number 12 sheet metal screws into backing at both the top and bottom for a total of four screws. Wood stud connections use two number 12 wood screws into 3x4 wood backing at both the top and bottom. Concrete wall connections employ two 3/16 inch concrete anchors at the top and bottom for a total of four anchors.

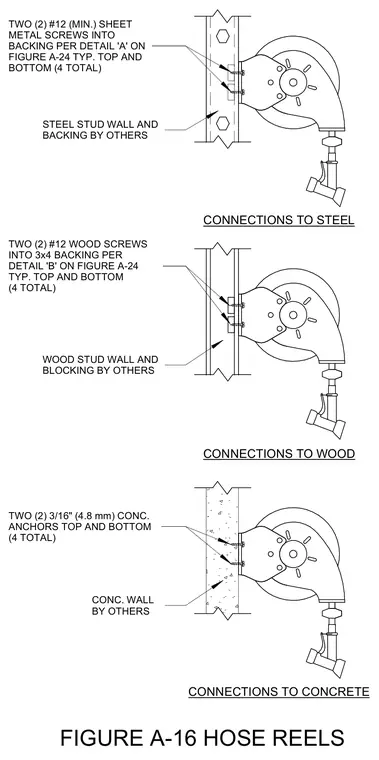

FIGURE A-16 HOSE REELS TWO (2) 3/16" (4.8 mm) CONC. ANCHORS TOP AND BOTTOM (4 TOTAL) CONC. WALL BY OTHERS CONNECTIONS TO CONCRETE CONNECTIONS TO WOOD CONNECTIONS TO STEEL TWO (2) #12 WOOD SCREWS INTO 3x4 BACKING PER DETAIL 'B' ON FIGURE A-24 TYP. TOP AND BOTTOM (4 TOTAL) TWO (2) #12 (MIN.) SHEET METAL SCREWS INTO BACKING PER DETAIL 'A' ON FIGURE A-24 TYP. TOP AND BOTTOM (4 TOTAL) WOOD STUD WALL AND BLOCKING BY OTHERS STEEL STUD WALL AND BACKING BY OTHERS
